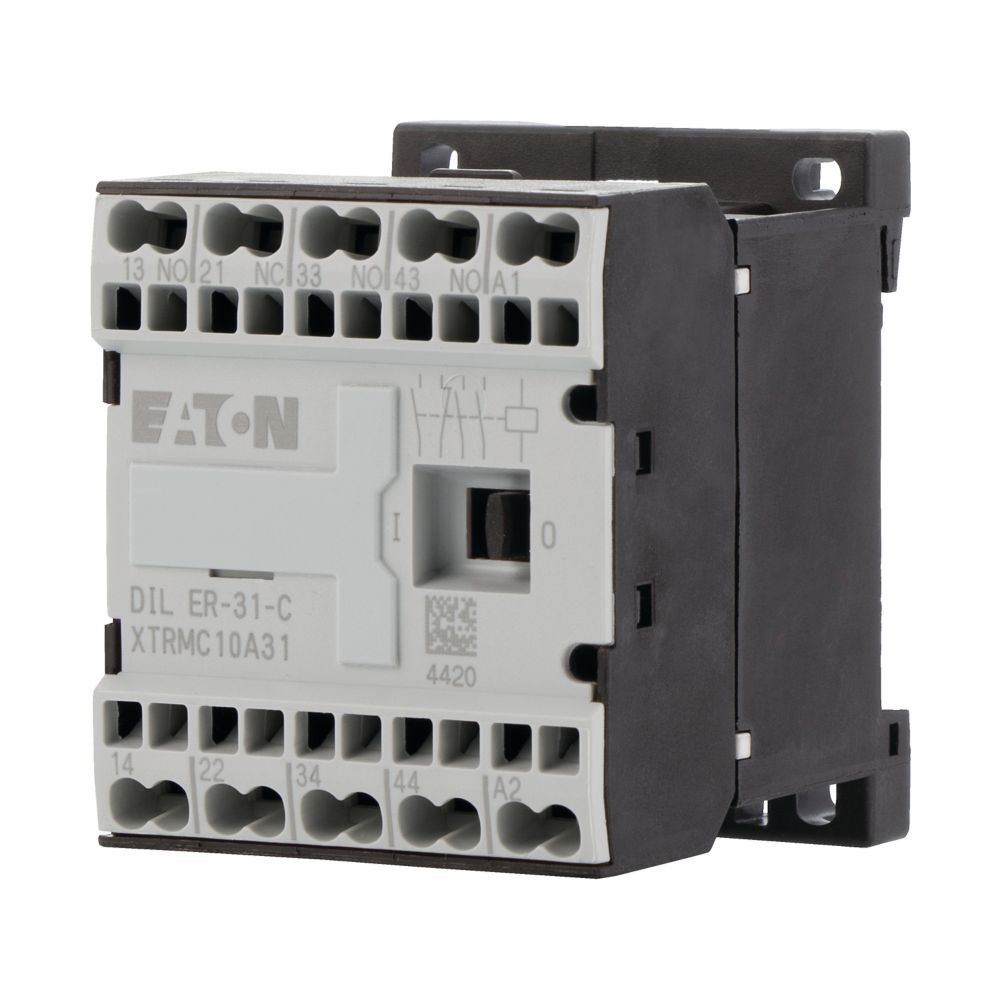

Contactor Application:
Eaton Moeller series DILER
Coil Voltage:
240 V
Width:
45 mm
Contact Current:
6A
Control Circuit Voltage Uc:
0.85 to 1.1 V ac
Function:
Straight
Operational Current Ie:
10A
Product Type:
Contactor Relay
Maximum Operating Temperature:
50°C
Terminal Type:
Spring Loaded
Normal State Configuration:
3 NO/1 NC
Length:
52mm
Standards/Approvals:
CSA CSA Class No.: 3211-03, IEC/EN 60947, CSA File No.: 012528, CE EN 60947-5-1, CSA-C22.2 No. 14-05, VDE 0660, UL UL Category Control No.: NKCR, UL File No.: E29184, UL 508, IEC/EN 60947-4-1
Number of Auxiliary Contacts:
3
Contact Voltage:
600V
Mount Type:
DIN Rail/Screw
Series:
DILER
Depth:
52mm
Minimum Operating Temperature:
-25°C
Auxiliary Contact Configuration:
3 NO/1 NC
Power Rating:
25VA
Number of Poles:
4
