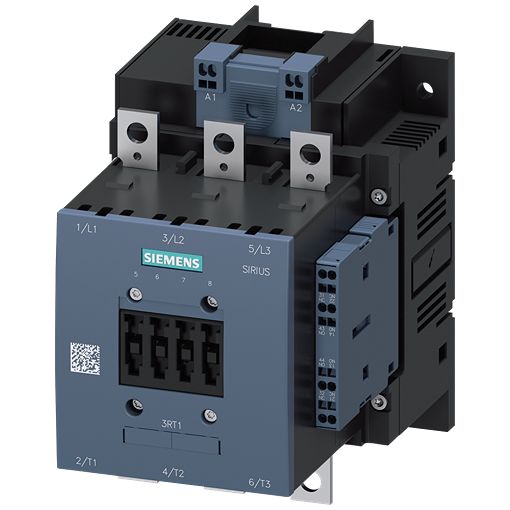

Contactor Application:
Power Contactor
Coil Voltage:
575/600 V
Pole and Throw Configuration:
3
Width:
120 mm
Contact Current:
65A
Control Circuit Voltage Uc:
600 V
Function:
Multifunction
Better World Claim:
Repairable by the End User
Operational Current Ie:
65A
Product Type:
Contactor
Maximum Operating Temperature:
60°C
Length:
172mm
Standards/Approvals:
UL, UKCA, RMRS, RCM, PRS, ISO 13849-1, IP20, IEC 61508-2, IEC61508, IEC 60947-4-1, IEC 60529, EAC, DNV, CSA, CE, CCC, ABS, URS
Number of Auxiliary Contacts:
4
Auxiliary Contact Configuration:
2 NO/2 NC
Mount Type:
Screw
Better World Product:
Yes
Series:
3RT
Depth:
170mm
Normal State Configuration:
2 NO/2 NC
Contact Voltage:
1kV
Power Rating:
90kW
Number of Poles:
3
Minimum Operating Temperature:
-25°C
