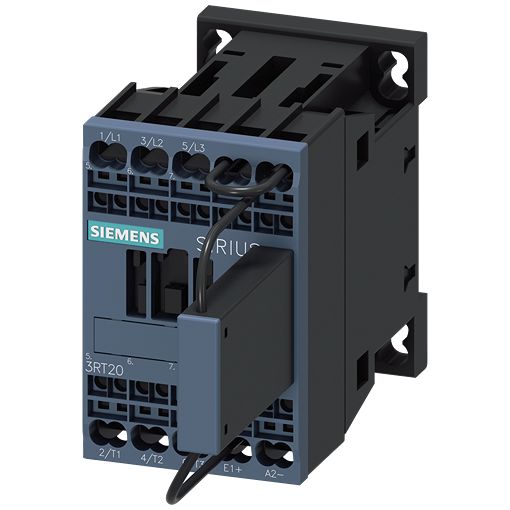

Contactor Application:
AC-3, AC-3e, Traction Contactor
Coil Voltage:
110 V dc
Pole and Throw Configuration:
3P
Width:
45 mm
Contact Current:
22A
Control Circuit Voltage Uc:
110 V
Function:
Safety
Operational Current Ie:
22A
Product Type:
Contactor
Maximum Operating Temperature:
70°C
Terminal Type:
Spring Loaded
Length:
70mm
Standards/Approvals:
PRS, ISO 13849-2, KC, RCM, RMRS, UKCA, UL, ABS, CCC, CE, CSA, DNV, EAC, EMV, IEC 60947-4-1, IEC 60947-5-1
Number of Auxiliary Contacts:
1
Auxiliary Contact Configuration:
1 NC
Mount Type:
DIN Rail
Series:
3RT2
Depth:
121mm
Normal State Configuration:
1 NC
Contact Voltage:
690V
Power Rating:
7.5kW
Number of Poles:
3
Minimum Operating Temperature:
-40°C
