Coil Voltage:
240/277 V
Width:
160 mm
Contact Current:
400A
Control Circuit Voltage Uc:
277 V
Better World Claim:
Repairable by the End User
Operational Current Ie:
400200A

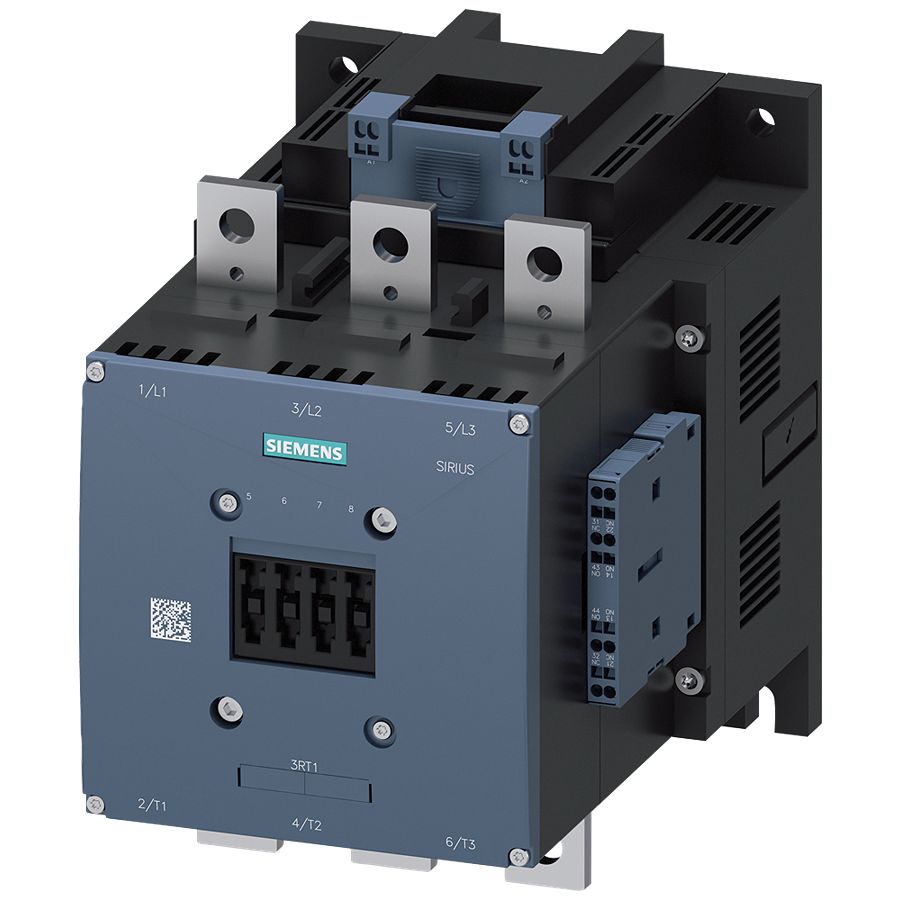

Product Type:
Contactor
Maximum Operating Temperature:
60°C
Terminal Type:
Spring Loaded
Length:
214mm
Standards/Approvals:
IEC 81346-2, IEC 61508-2, SN 31920, UKCA, UL, IEC 60947-4-1, IEC 60947-1, IEC 60947-5-1, IEC 61508, IEC 60529, IEC 60204-1, IEC 60068-2-30, EN ISO 13849-2, EN ISO 13849-1, EN 62061, EAC, CE, CCC
Number of Auxiliary Contacts:
4
Auxiliary Contact Configuration:
2 NO/2 NC
Mount Type:
Surface
Better World Product:
Yes
Series:
3RT1
Depth:
225mm
Normal State Configuration:
2 NO/2 NC
Contact Voltage:
1kV
Power Rating:
200kW
Number of Poles:
3
Minimum Operating Temperature:
-25°C
