Number of Auxiliary Contacts:
4
Maximum Operating Temperature:
60°C
Auxiliary Contact Configuration:
2 NO/2 NC
Minimum Operating Temperature:
-25°C
Series:
3RT1
Coil Voltage:
200/277 V
Length:
214mm
Operational Current Ie:
550200A
Width:
160 mm
Depth:
225mm
Contact Current:
500A
Control Circuit Voltage Uc:
277 V
Normal State Configuration:
2 NO/2 NC
Standards/Approvals:
IEC 60068-2-30, CCC, CE, EAC, EN 62061, EN ISO 13849-1, EN ISO 13849-2, IEC 60947-4-1, IEC 60947-5-1, IEC 61508, IEC 61508-2, IEC 81346-2, SN 31920, UKCA, UL, IEC 60204-1, IEC 60529, IEC 60947-1
Contact Voltage:
1kV
Power Rating:
250kW

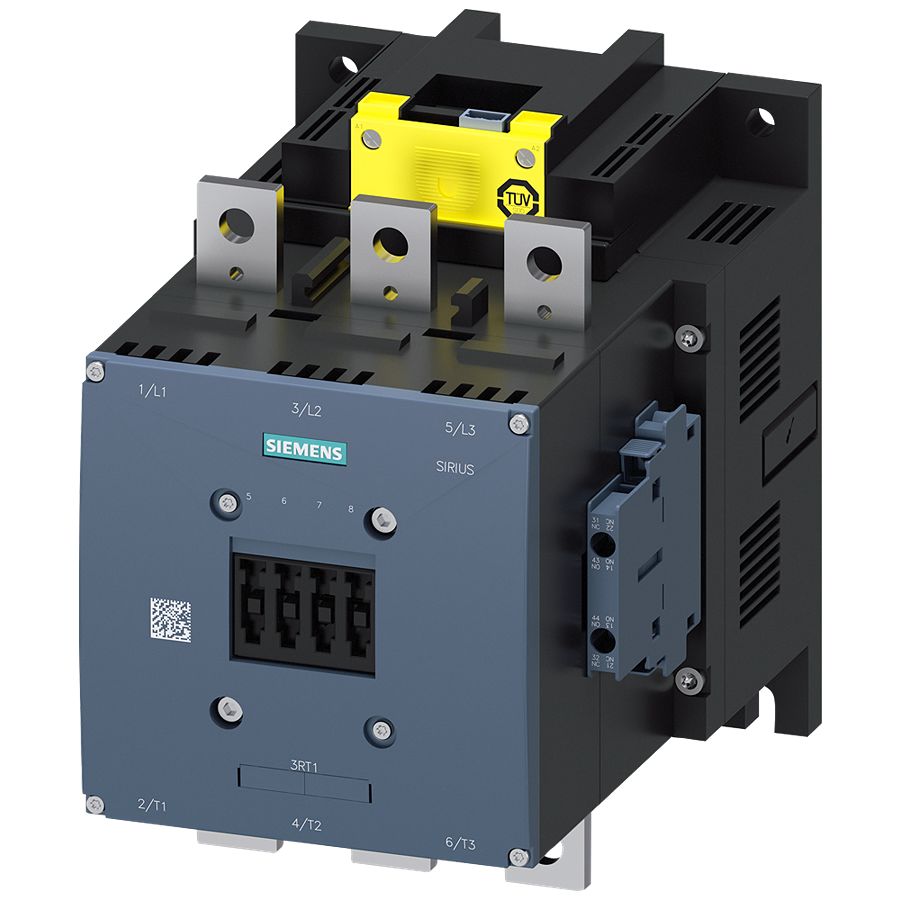

Product Type:
Contactor
Number of Poles:
3
Terminal Type:
Screw
Mount Type:
Surface
