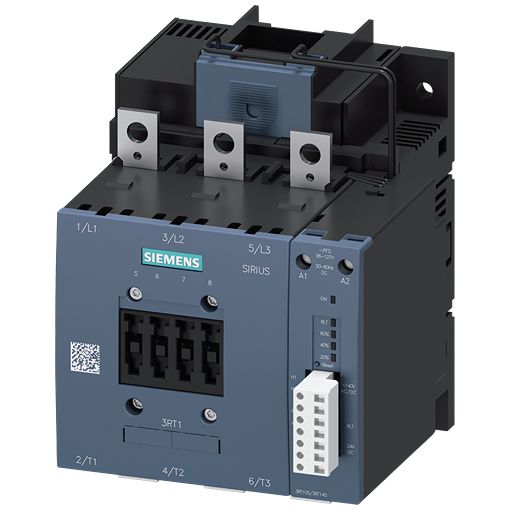

Contactor Application:
Power Contactor
Coil Voltage:
277 V
Pole and Throw Configuration:
3
Width:
140 mm
Contact Current:
160A
Control Circuit Voltage Uc:
277 V
Function:
Multifunction
Operational Current Ie:
160A
Product Type:
Contactor
Maximum Operating Temperature:
60°C
Terminal Type:
Screw
Length:
172mm
Standards/Approvals:
CCC, CE, CSA, DNV, EAC, IEC 60529, IEC 60947-4-1, IEC61508, IEC 61508-2, IP20, ISO 13849-1, PRS, RCM, RMRS, UKCA, UL
Number of Auxiliary Contacts:
2
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
Screw
Series:
3RT1
Depth:
170mm
Normal State Configuration:
2 NO/2 NC
Contact Voltage:
1kV
Power Rating:
55kW
Number of Poles:
3
Minimum Operating Temperature:
-25°C
