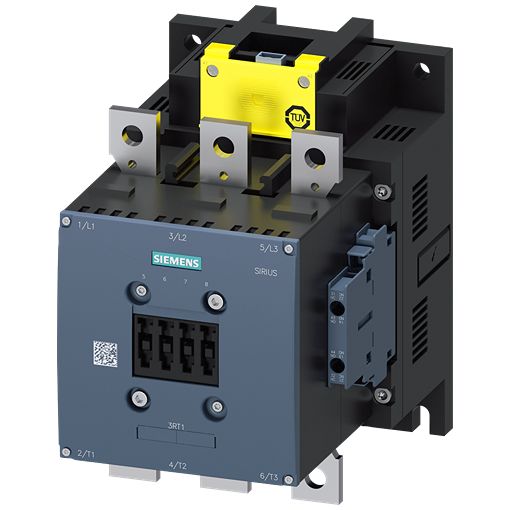

Contactor Application:
Power Contact
Coil Voltage:
200/277 V ac/dc
Pole and Throw Configuration:
3P
Width:
145 mm
Contact Current:
400A
Control Circuit Voltage Uc:
277 V
Function:
Safety, Pipe S-Type, Mirror Contact
Operational Current Ie:
400A
Product Type:
Contactor
Maximum Operating Temperature:
60°C
Normal State Configuration:
2 NC/2 NO
Length:
210mm
Standards/Approvals:
IEC 60947-4-1, UL, UKCA, RCM, IP20, IEC61508, IEC 60529, EAC, CSA, CE, CCC
Number of Auxiliary Contacts:
4
Auxiliary Contact Configuration:
2 NO/2 NC
Mount Type:
Screw
Series:
3RT14
Depth:
202mm
Minimum Operating Temperature:
-25°C
Contact Voltage:
690V
Power Rating:
276kW
Number of Poles:
3
