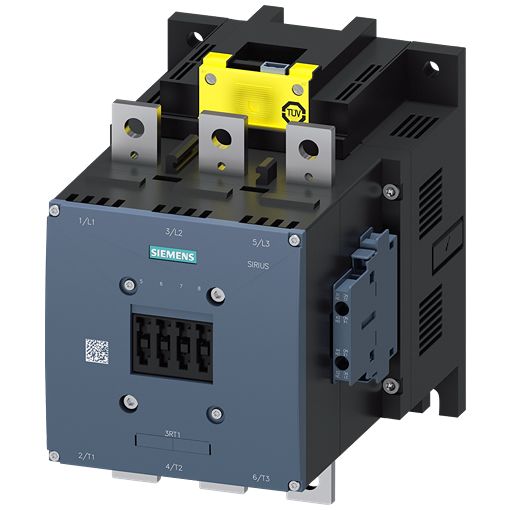

Contactor Application:
Power Contact
Coil Voltage:
96/127 V ac/dc
Pole and Throw Configuration:
3P
Width:
160 mm
Contact Current:
690A
Control Circuit Voltage Uc:
127 V ac/dc
Function:
Safety, Pipe S-Type, Mirror Contact
Operational Current Ie:
690A
Product Type:
Contactor
Maximum Operating Temperature:
60°C
Terminal Type:
Screw
Minimum Operating Temperature:
-25°C
Length:
214mm
Standards/Approvals:
UL, UKCA, RCM, ISO 13849-1, IP20, IEC61508, IEC 60947-4-1, IEC 60529, EAC, CSA, CE, CCC
Number of Auxiliary Contacts:
4
Auxiliary Contact Configuration:
2 NO/2 NC
Mount Type:
Screw
Series:
3RT14
Depth:
225mm
Normal State Configuration:
2 NC/2 NO
Contact Voltage:
690V
Power Rating:
476kW
Number of Poles:
3
