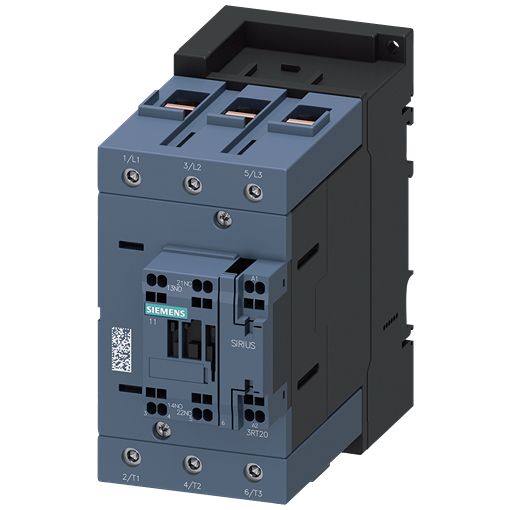

Contactor Application:
Power Contactor
Coil Voltage:
110 V
Pole and Throw Configuration:
3
Width:
70 mm
Contact Current:
130A
Control Circuit Voltage Uc:
110 V
Function:
Multifunction
Operational Current Ie:
130A
Product Type:
Contactor
Maximum Operating Temperature:
60°C
Normal State Configuration:
NO/NC
Length:
140mm
Standards/Approvals:
UL, UKCA, RMRS, RCM, PRS, ISO 13849-1, IP20, IEC 61508-2, IEC61508, IEC 60947-4-1, IEC 60529, EAC, DNV, CSA, CE, CCC
Number of Auxiliary Contacts:
2
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
DIN Rail
Series:
3RT2
Depth:
152mm
Minimum Operating Temperature:
-25°C
Contact Voltage:
1kV
Power Rating:
55kW
Number of Poles:
3
