Number of Auxiliary Contacts:
4
Maximum Operating Temperature:
60°C
Normal State Configuration:
2 NC/2 NO
Auxiliary Contact Configuration:
2 NO/2 NC
Minimum Operating Temperature:
-25°C
Series:
3RT14
Coil Voltage:
200/277 V ac/dc
Length:
214mm
Operational Current Ie:
600A
Width:
180 mm
Depth:
225mm
Contact Current:
690A
Control Circuit Voltage Uc:
277 V
Standards/Approvals:
CCC, CE, EAC, EN 62061, EN ISO 13849-1, EN ISO 13849-2, IEC 60068-2-30, IEC 60204-1, IEC 60529, IEC 60947-1, IEC 60947-4-1, IEC 60947-5-1, IEC 61508, IEC 61508-2, IEC 81346-2, SN 31920, UKCA, UL
Contact Voltage:
690V
Product Type:

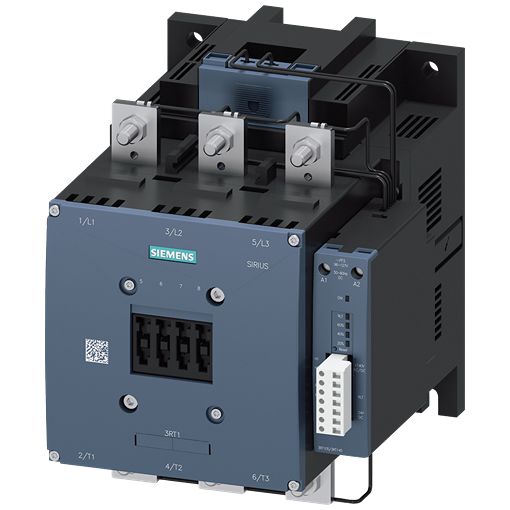

Contactor
Number of Poles:
3
Terminal Type:
Screw
Mount Type:
Surface
