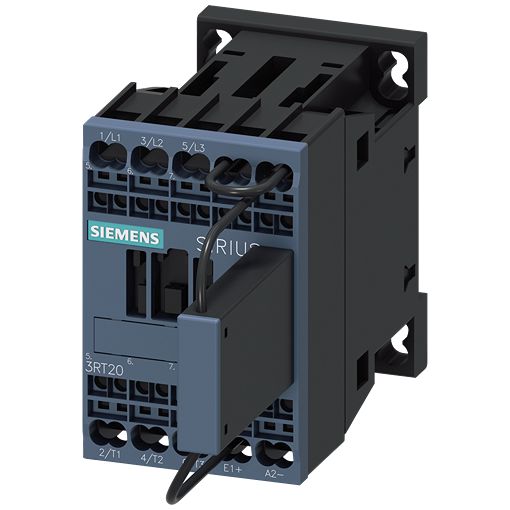

Contactor Application:
Traction Contactor, AC-3e, AC-3
Coil Voltage:
110 V dc
Pole and Throw Configuration:
3P
Width:
45 mm
Contact Current:
22A
Control Circuit Voltage Uc:
110 V
Function:
Pipe S-Type, Mirror Contact
Operational Current Ie:
12A
Product Type:
Contactor
Maximum Operating Temperature:
70°C
Terminal Type:
Spring Loaded
Length:
70mm
Standards/Approvals:
CE, CCC, ABS, A600/Q600, RMRS, PRS, RCM, UKCA, UL, UL/CSA approvals, EAC, DNV, CSA, IEC 60077, IEC 60947-1, IEC 60947-4-1
Number of Auxiliary Contacts:
1
Auxiliary Contact Configuration:
1 NC
Mount Type:
DIN Rail
Series:
3RT2
Depth:
121mm
Normal State Configuration:
1 NC
Contact Voltage:
690V
Power Rating:
5.5kW
Number of Poles:
3
Minimum Operating Temperature:
-40°C
