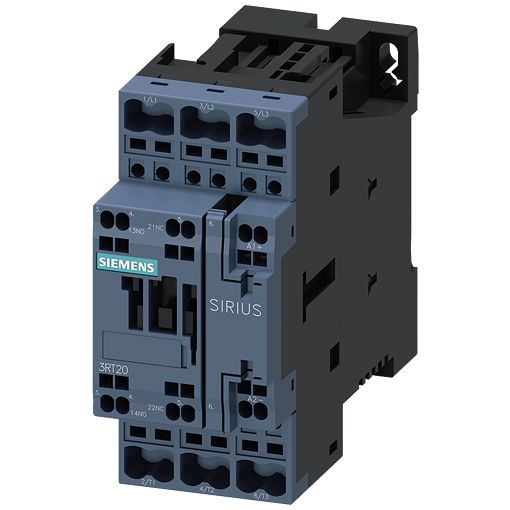

Contactor Application:
Traction Contactor, AC-3e, AC-3
Coil Voltage:
72 V dc
Pole and Throw Configuration:
3P
Width:
45 mm
Contact Current:
40A
Control Circuit Voltage Uc:
72 V
Function:
Pipe S-Type, Mirror Contact
Operational Current Ie:
40A
Product Type:
Contactor
Maximum Operating Temperature:
70°C
Terminal Type:
Spring Loaded
Length:
102mm
Standards/Approvals:
IEC 60947-1, DNV, IEC 60077, EAC, UL/CSA approvals, UL, UKCA, RMRS, A600/Q600, RCM, PRS, IEC 60947-4-1, ABS, CCC, CE, CSA
Number of Auxiliary Contacts:
2
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
DIN Rail
Series:
3RT2
Depth:
107mm
Normal State Configuration:
1 NO/1 NC
Contact Voltage:
690V
Power Rating:
7.5kW
Number of Poles:
3
Minimum Operating Temperature:
-40°C
