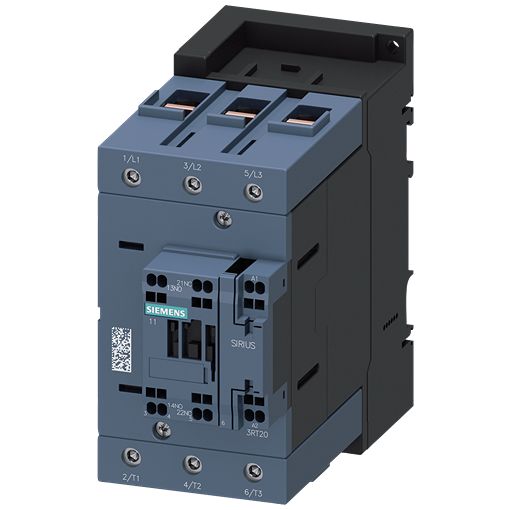

Contactor Application:
AC-3, AC-3e, Traction Contactor
Coil Voltage:
24 V dc
Pole and Throw Configuration:
3P
Width:
70 mm
Contact Current:
130A
Control Circuit Voltage Uc:
24 V
Function:
Mirror Contact, Pipe S-Type
Operational Current Ie:
95A
Product Type:
Contactor
Maximum Operating Temperature:
70°C
Normal State Configuration:
1 NO/1 NC
Length:
140mm
Standards/Approvals:
ABS, CCC, CE, CSA, EAC, IEC 60077, IEC 60947-1, IEC 60947-4-1, IEC 61508, ISO 13849, PRS, RCM, RMRS, UKCA, UL, UL/CSA
Number of Auxiliary Contacts:
2
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
DIN Rail
Series:
3RT2
Depth:
152mm
Minimum Operating Temperature:
-40°C
Contact Voltage:
690V
Power Rating:
45kW
Number of Poles:
3
