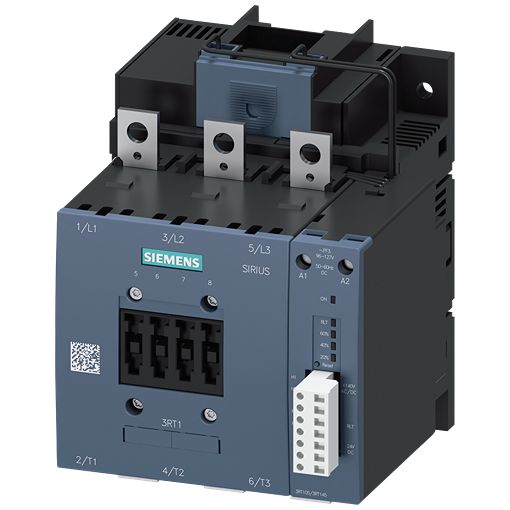

Contactor Application:
Power Contact
Coil Voltage:
96/127 V ac/dc
Pole and Throw Configuration:
3P
Width:
140 mm
Contact Current:
275A
Control Circuit Voltage Uc:
127 V
Function:
Mirror Contact, Pipe S-Type, Safety
Operational Current Ie:
275A
Product Type:
Contactor
Maximum Operating Temperature:
60°C
Terminal Type:
Screw
Length:
172mm
Standards/Approvals:
ABS, CCC, CE, CSA, DNV, EAC, IEC 60529, IEC 60947-4-1, IEC61508, IEC 61508-2, IP20, ISO 13849-1, PRS, RCM, RMRS, UKCA, UL, URS
Number of Auxiliary Contacts:
4
Auxiliary Contact Configuration:
2 NO/2 NC
Mount Type:
Screw
Series:
3RT14
Depth:
170mm
Normal State Configuration:
2 NC/2 NO
Contact Voltage:
690V
Power Rating:
189kW
Number of Poles:
3
Minimum Operating Temperature:
-25°C
