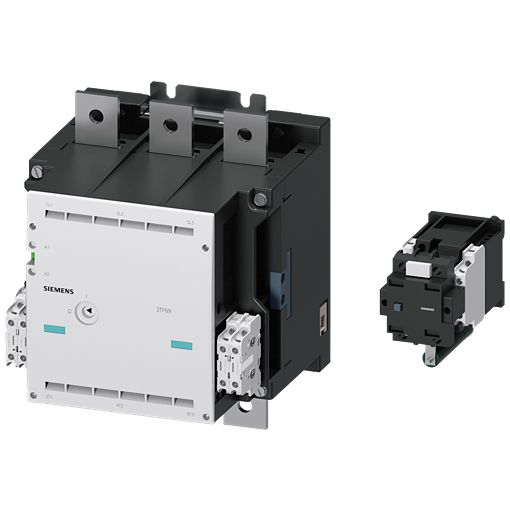

Contactor Application:
Vacuum Contactor
Coil Voltage:
24 V dc
Pole and Throw Configuration:
3P
Width:
230 mm
Contact Current:
630A
Control Circuit Voltage Uc:
24 V
Function:
Mirror Contact, Pipe S-Type
Operational Current Ie:
630A
Product Type:
Contactor
Maximum Operating Temperature:
55°C
Terminal Type:
Screw
Length:
295mm
Standards/Approvals:
CCC, CE, CSA, DNV, EAC, IEC 60529, IEC 60947-4-1, IEC61508, IEC 61508-2, IP20, ISO 13849-1, RCM, RMRS, UKCA, UL
Number of Auxiliary Contacts:
6
Auxiliary Contact Configuration:
3 NO/3 NC
Mount Type:
Screw
Series:
3TF6
Depth:
237mm
Normal State Configuration:
3 NO/3 NC
Contact Voltage:
400V
Power Rating:
335kW
Number of Poles:
3
Minimum Operating Temperature:
-25°C
