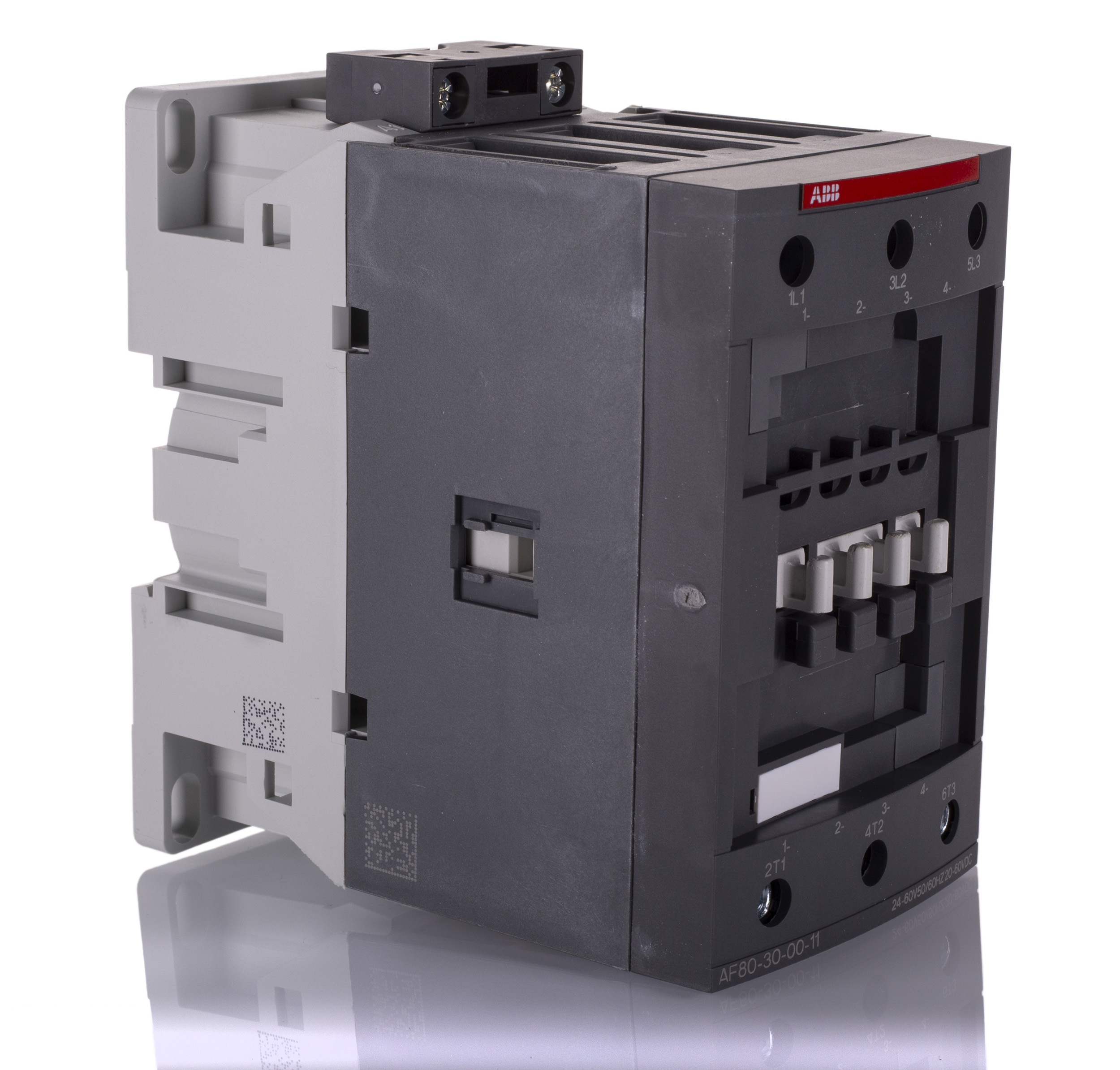

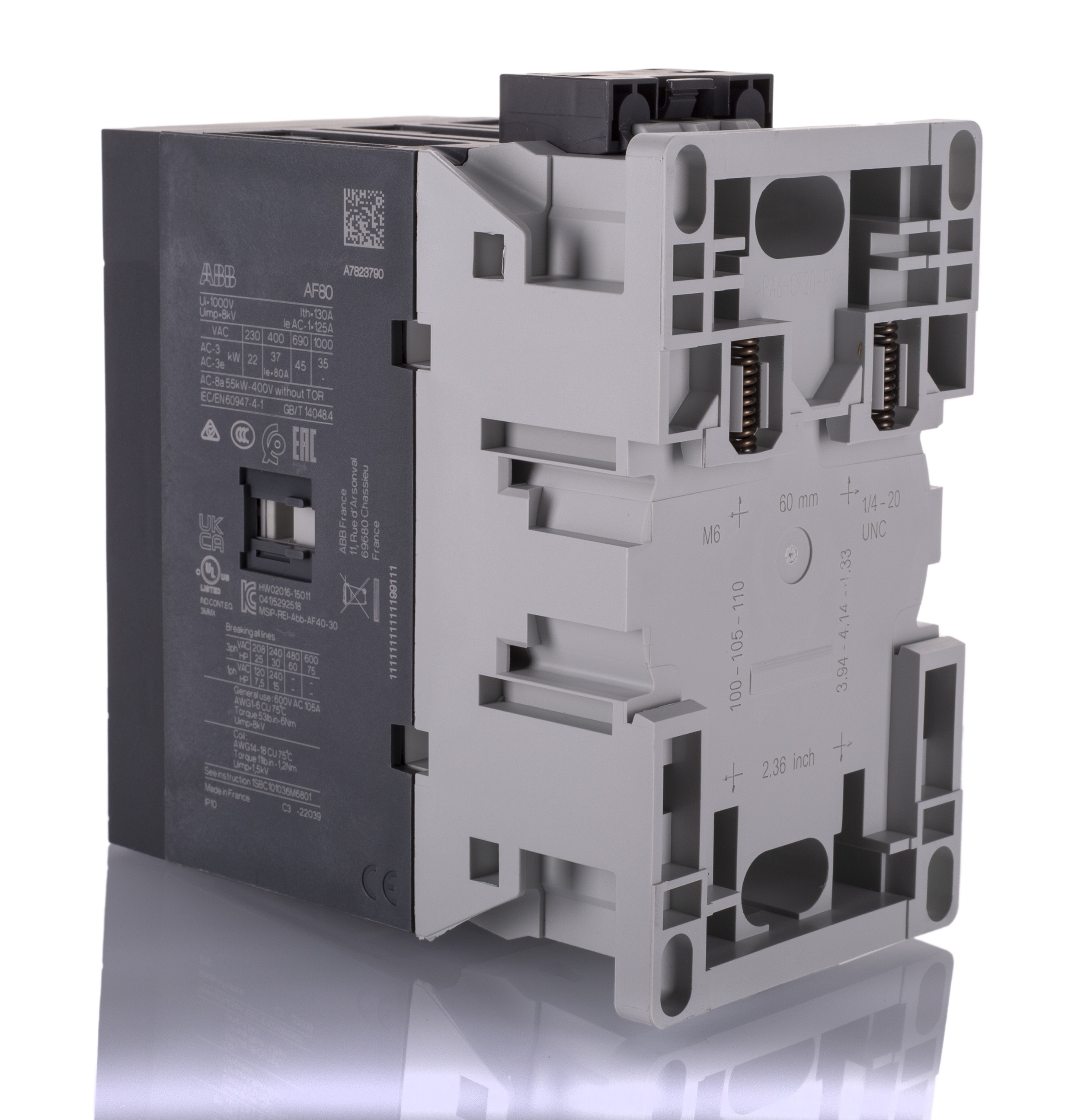

ABB AF Range AF80 3 Pole Contactor - 125 A, 24 V ac/dc Coil, 3NO, 37 kW

Enrgtech Part No: ET21677157
|
Manufacturer Part No:
1SBL397001R1100 AF80-30-00-11
|
Manufacturer: ABB

1SBL397001R1100--AF80-30-00-11 ABB AF Range AF80 3 Pole Contactor - 125 A, 24 V ac/dc Coil, 3NO, 37 kW

Product Information

Function:

Motor Control

Contactor Application:

Motor Control, Capacitor Switching

Maximum Operating Temperature:

70°C

Pole and Throw Configuration:

Series:

AF80

Minimum Operating Temperature:

-40°C

Coil Voltage:

20/60 V dc

Length:

70mm

Operational Current Ie:

80A

Width:

125.5 mm

Depth:

116mm

Contact Current:

125A

Checking for live stock

The ABB 1SBL397001R1100 AF80-30-00-11 is a heavy-duty 3-pole contactor engineered for superior motor control and power circuit switching in demanding industrial environments. Utilising advanced AF technology, this block-type contactor manages significant control voltage variations effortlessly, ensuring stable performance even in fluctuating networks. Its compact design and integrated surge protection make it an essential component for modern electrical panels, providing a reliable solution for managing high-power loads up to 37 kW.

What Makes Our Product Stand Out?

This ABB 1SBL397001R1100 AF80-30-00-11 contactor features a universal electronic coil that operates across a wide voltage range, significantly reducing the need for multiple spare parts. It provides a streamlined installation experience with built-in surge suppression, protecting your hardware without the cost of additional external components.

Universal Coil Compatibility: Operates on both AC and DC (24-60V AC / 20-60V DC) to handle global power variations.
Space-Efficient Design: Integrated surge protection saves valuable DIN rail space and simplifies cabinet wiring.

Core Performance Features & Technical Specifications

Rated Operational Power: 37 kW (400 V AC-3)
Current Rating: 125 A (AC-1) / 80 A (AC-3)
Number of Poles: 3 Main Poles (3 NO)
Rated Operational Voltage: Up to 1000 V IEC / 600 V UL
Mechanical Durability: 10 million cycles
Mounting: TH35-15 DIN rail or screw mounting
Protection Rating: IP20 (coil terminals) / IP10 (main terminals)
Impulse Withstand Voltage: 8 kV.
