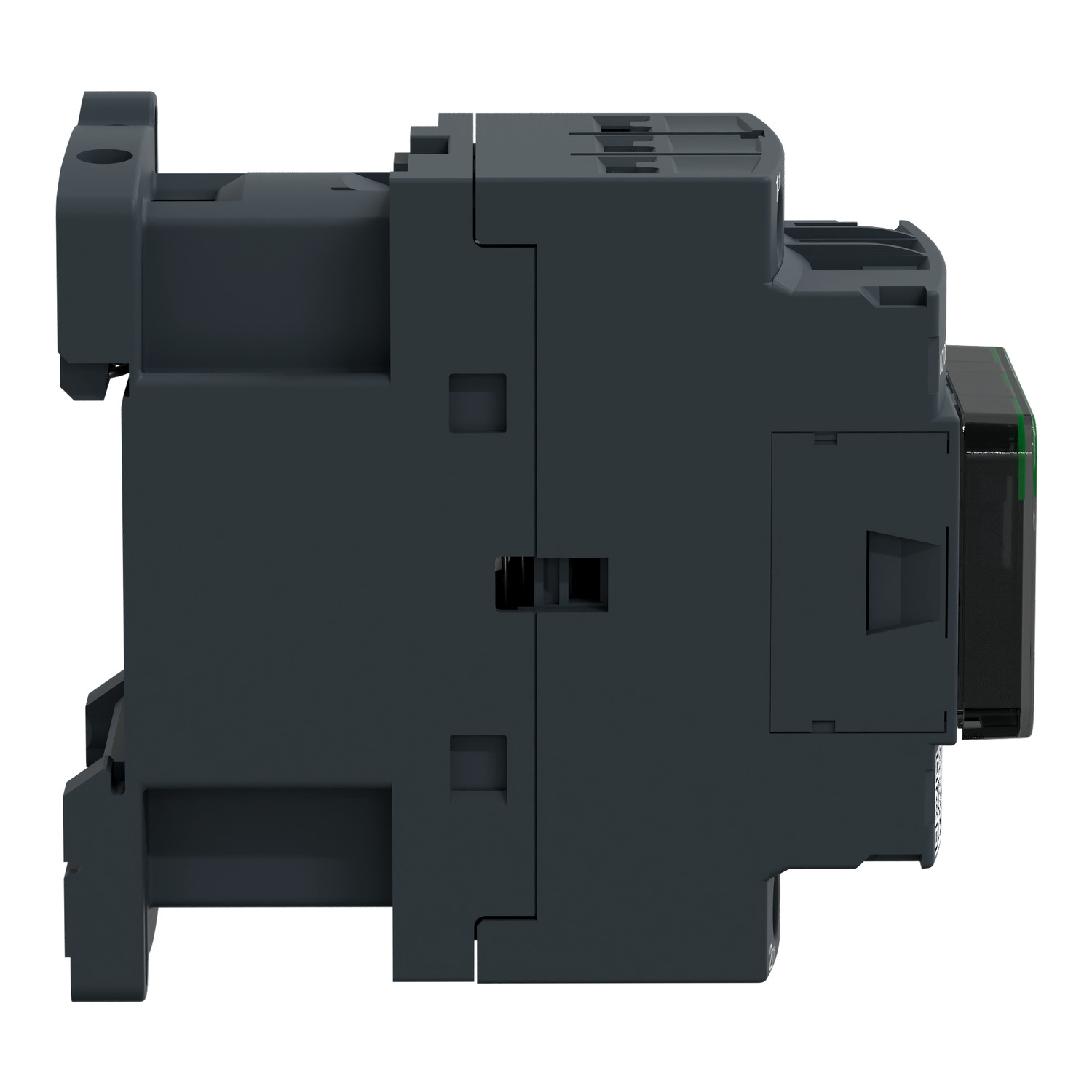

Schneider Electric TeSys 3 Pole Reversing Contactor - 9 A, 200 V ac Coil, 1NC + 1NO, 5.5 kW

LC1D09L7 Schneider Electric TeSys 3 Pole Reversing Contactor - 9 A, 200 V ac Coil, 1NC + 1NO, 5.5 kW
LC1D09L7
LC1D09L7
ET21593247
ET21593247
LC1D09L7 Schneider Electric TeSys 3 Pole Reversing Contactor - 9 A, 200 V ac Coil, 1NC + 1NO, 5.5 kW
Schneider Electric

Product Information

Coil Voltage:
200 V ac
Pole and Throw Configuration:
3P
Width:
45mm
Range:
TeSys D
Function:
Reversing
Contact Current Rating:
9 A
Maximum Operating Temperature:
+70°C
Terminal Type:
Screw
Minimum Operating Temperature:
-40°C
Control Voltage:
200 V ac
Length:
77mm
Better World Verification:
Green Premium
Better World Product:
Yes
Series:
LC1D
Depth:
86mm
Mounting Style:
DIN Rail
Number Of Auxiliary Contacts:
1NO + 1NC
Normal State Configuration:
3NO
Auxiliary Contact Configuration:
1NO + 1NC
Power Rating:
5.5 kW
Contact Voltage Rating:
690 V ac
Number of Poles:
3
RoHs Compliant
Checking for live stock

The Schneider Electric TeSys D series is a contactor which has a without built in suppressor module coil technology. The motor starter type is direct on line contactor. It has control circuit voltage of 200 V ac. It is used in applications like resistive load and motor control. The type of connection for power and control circuit is through screw-clamp terminal. Signalling circuit frequency is 25 to 400 Hz Ambient operating temperature is -40 to 60 °C

pdf icon
Green Premium - Product Environmental Profile(Technical Reference)
pdf icon
Datasheet - LC1D09L7(Technical Reference)
pdf icon
Instruction Sheet - LC1D Series(Technical Reference)
