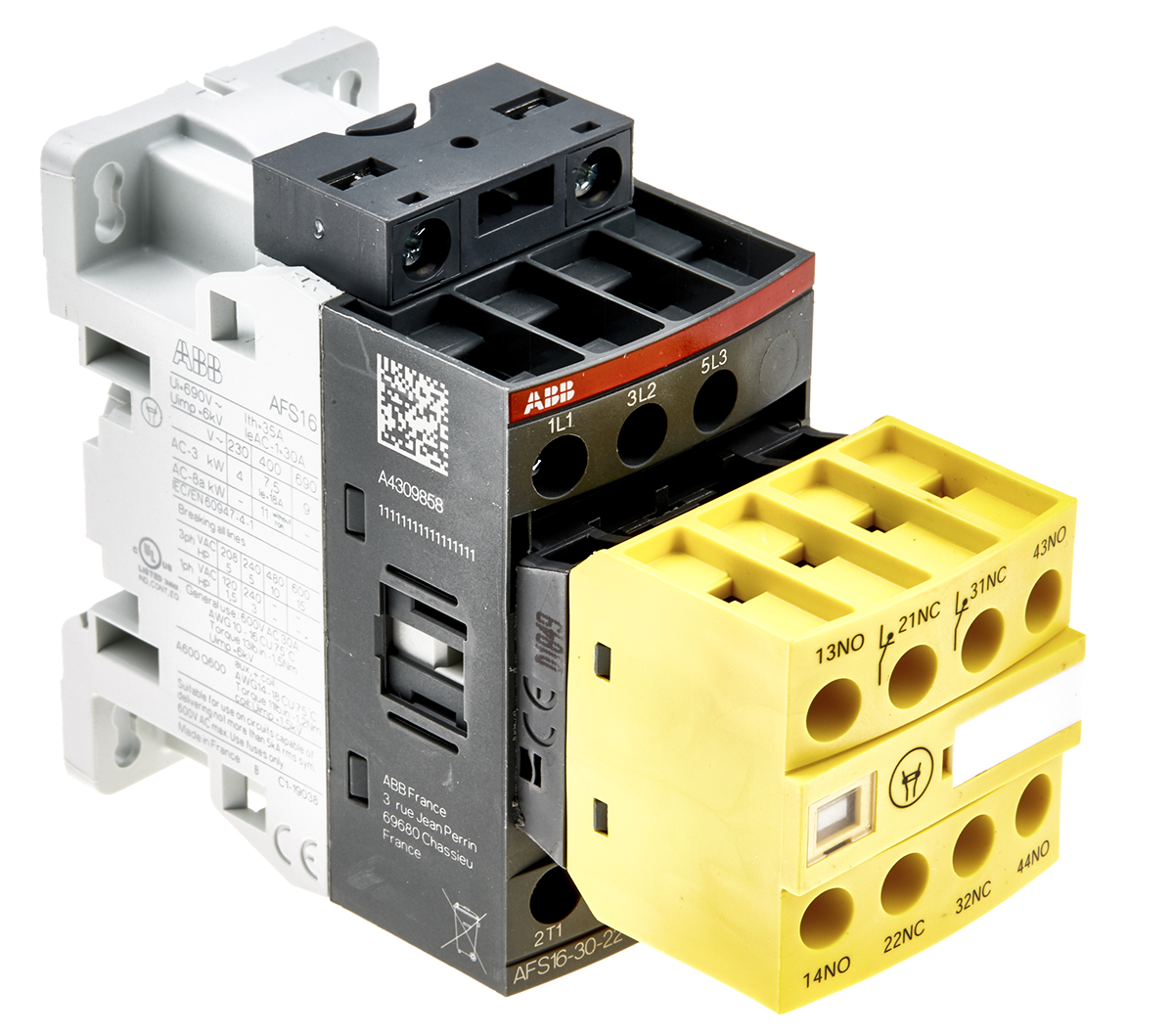

ABB Jokab AFS 3 Pole Safety Contactor - 30 A, 100 → 250 V dc, 100 → 250 V @ 50/60 Hz Coil, 3NO

1SBL177082R1322--AFS16-30-22-13 ABB Jokab AFS 3 Pole Safety Contactor - 30 A, 100 → 250 V dc, 100 → 250 V @ 50/60 Hz Coil, 3NO
1SBL177082R1322  AFS16-30-22-13
1SBL177082R1322  AFS16-30-22-13
ET21475226
ABB Jokab

Product Information

Coil Voltage:
100 to 250 V ac/dc
Pole and Throw Configuration:
3P
Width:
110.5mm
Range:
AFS16-30-22-13
Function:
Safety
Load Current:
30A
Contact Current Rating:
30 A
Maximum Operating Temperature:
+60 °C, +70°C
Load Voltage:
690V ac
Minimum Operating Temperature:
-40 °C, -25°C
Control Voltage:
220 → 240 V ac
Length:
45mm
Series:
AFS
Depth:
80mm
Terminal Type:
Screw
Mounting Style:
DIN Rail Mount
Number Of Auxiliary Contacts:
4
Normal State Configuration:
3NO
Auxiliary Contact Configuration:
2NO + 2NC
Power Rating:
9 kW
Contact Voltage Rating:
600 V ac
Number of Poles:
3
RoHs Compliant
Checking for live stock

This is AFS 3 Pole Safety Contactor - 30 A 100 → 250 V dc 100 → 250 V @ 50/60 Hz Coil 3NO manufactured by ABB Jokab. The manufacturer part number is 1SBL177082R1322 AFS16-30-22-13. The coil voltage of the product is 100 to 250 v ac/dc. It has 3p pole and throw configuration. Furthermore, the product is 110.5mm wide. It features afs16-30-22-13 range. It performs basic function of safety. It has a typical 30a load current. The rated contact current is 30 a. It has a maximum operating temperature of +60 °c, +70°c. Additionally, it can withstand 690v ac load voltage . Whereas, the minimum operating temperature of the product is -40 °c, -25°c. It has 220 → 240 v ac control voltage . Its accurate length is 45mm. The product afs, is a highly preferred choice for users. The product comes in 80mm depth. The terminal is a screw type. The product is available in din rail mount style. It is composed of [Number of Auxiliary Contacts] auxiliary contacts. The normal state configuration includes 3no. In addition, it has a standard 2no + 2nc auxiliary contact configuration . Feature 9 kw of power rating. The integrated contact has 600 v ac of voltage rating. It has equipped with 3 poles.
