Contactor Application:
Resistive Load, Motor Control
Coil Voltage:
110 V ac
Pole and Throw Configuration:
3
Width:
127 mm
Contact Current:
115A
Control Circuit Voltage Uc:
120 V
Function:
Motor Control
Operational Current Ie:
115A
Product Type:
Contactor
Maximum Operating Temperature:
70°C
Terminal Type:
Screw
Length:
158mm
Standards/Approvals:
RoHS, IEC, EAC, UL, CCC, CSA
Number of Auxiliary Contacts:
2
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
DIN Rail
Better World Product:
Yes
Series:
LC1D
Depth:
136mm
Normal State Configuration:
3 NO
Contact Voltage:
600V ac
Power Rating:
55kW
Number of Poles:
3
Minimum Operating Temperature:
-40°C
Coil Voltage:
120VAC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
title:

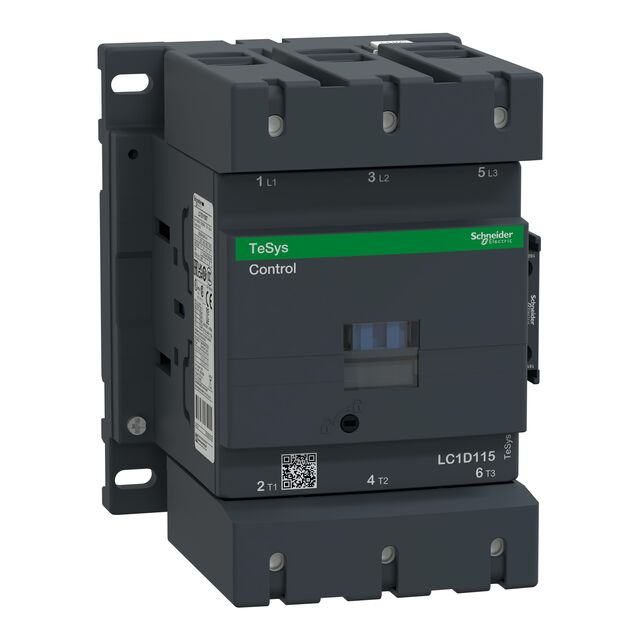

LC1D115G7
Coil Power:
-
Must Operate Voltage:
96 VAC
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Operate Time:
50 ms
Must Release Voltage:
36 VAC
standardLeadTime:
5 Weeks
Contact Rating (Current):
115 A
Features:
Auxiliary Contacts, Diode
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Switching Voltage:
1000VAC, 300VDC - Max
Release Time:
20 ms
Packaging:
Box
Contact Material:
-
