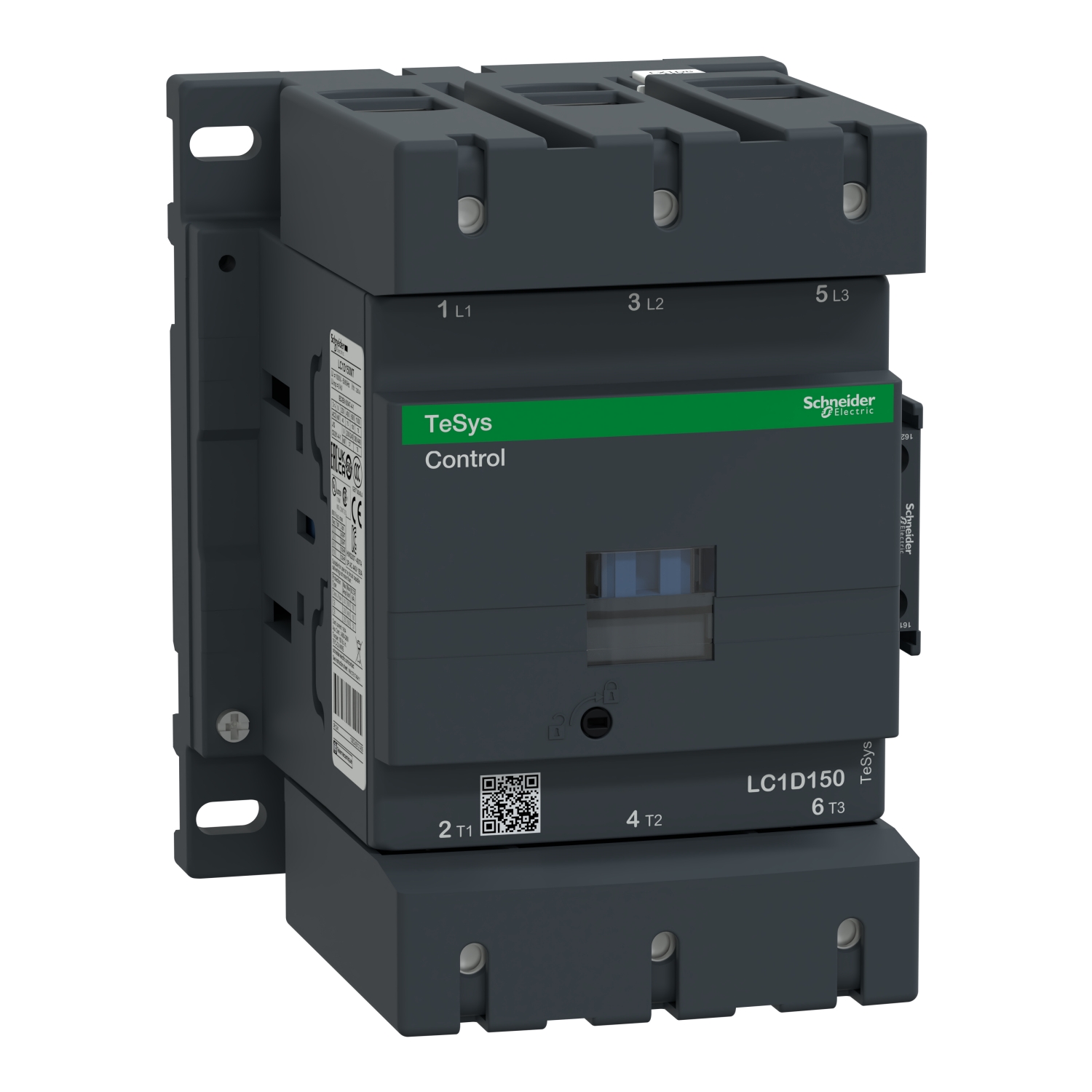

Contactor Application:
Resistive Load, Motor Control
Coil Voltage:
230 V ac
Pole and Throw Configuration:
3
Width:
120 mm
Contact Current:
150A
Distrelec Product Id:
301-50-623
Control Circuit Voltage Uc:
230 V
Function:
Motor Control
Operational Current Ie:
150A
Product Type:
Contactor
Maximum Operating Temperature:
60°C
Terminal Type:
Screw
Length:
158mm
Standards/Approvals:
UL, RoHS, IEC, EAC, CSA, CCC
Number of Auxiliary Contacts:
2
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
DIN Rail
Better World Product:
Yes
Series:
LC1D
Depth:
132mm
Normal State Configuration:
3 NO
Contact Voltage:
1kV
Power Rating:
80kW
Number of Poles:
3
Minimum Operating Temperature:
-40°C
Coil Voltage:
230VAC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
Switching Voltage:
1000VAC, 300VDC - Max
Coil Power:
-
Must Operate Voltage:
184 VAC
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Operate Time:
35 ms
Must Release Voltage:
69 VAC
standardLeadTime:
5 Weeks
Contact Rating (Current):
150 A
Features:
Auxiliary Contacts, Diode
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Release Time:
75 ms
Packaging:
Box
Contact Material:
-
