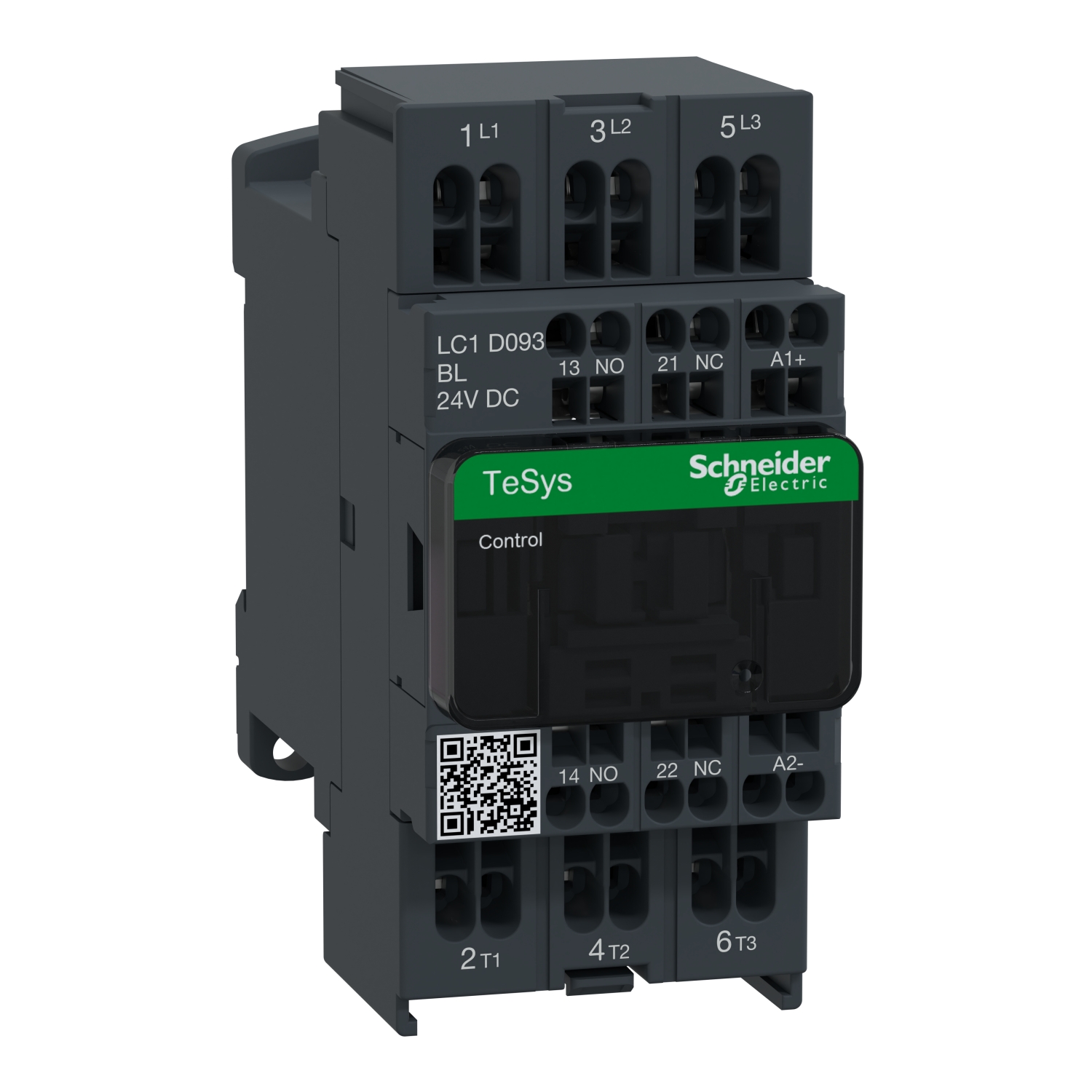

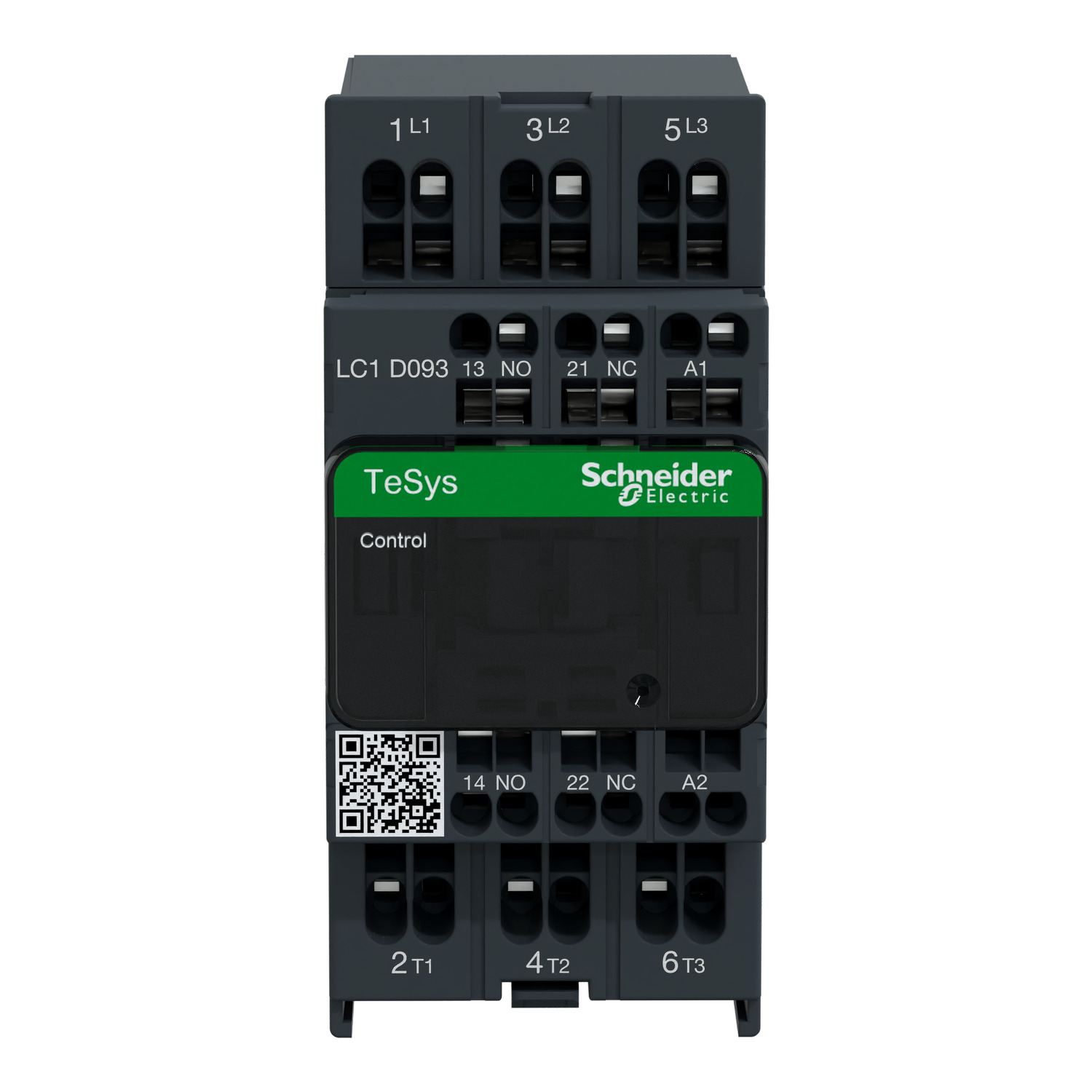

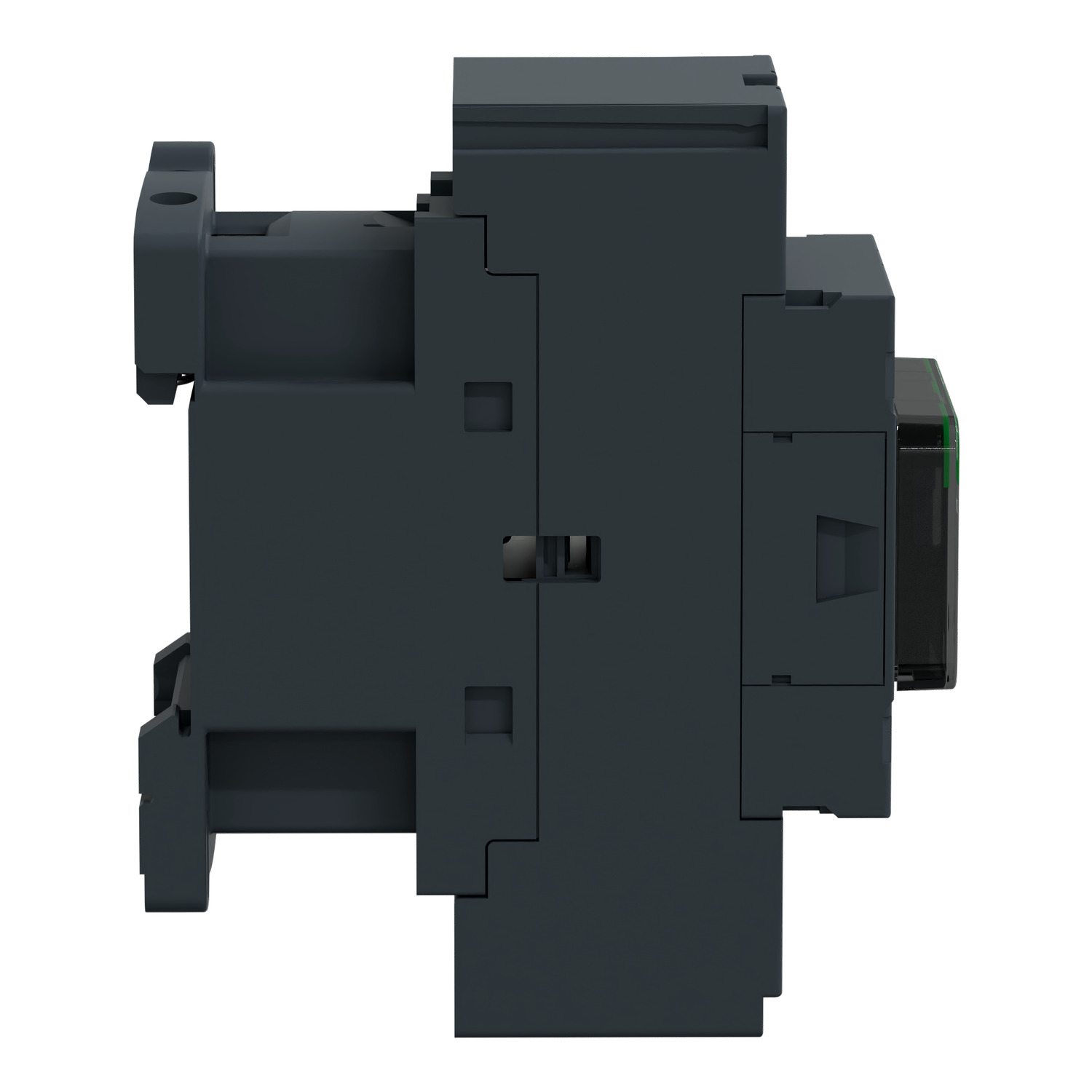

Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 9 A, 4 kW, 24 V dc Coil

LC1D093BL Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 9 A, 4 kW, 24 V dc Coil
LC1D093BL
LC1D093BL
ET16747674
ET16747674
Contactors
LC1D093BL Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 9 A, 4 kW, 24 V dc Coil
Schneider Electric

Product Information

Coil Voltage:
24 V dc
Pole and Throw Configuration:
3P
Width:
99mm
Range:
TeSys D
Function:
Reversing
Contact Current Rating:
9 A
Maximum Operating Temperature:
+60°C
Terminal Type:
Cage Clamp
Control Voltage:
24 V dc
Length:
45mm
Better World Verification:
Green Premium
Better World Product:
Yes
Series:
LC1D
Depth:
84mm
Mounting Style:
DIN Rail Mount
Number Of Auxiliary Contacts:
2
Normal State Configuration:
3NO
Auxiliary Contact Configuration:
1NO + 1NC
Power Rating:
4 kW
Contact Voltage Rating:
690 V ac
Number of Poles:
3
Minimum Operating Temperature:
-5°C
Coil Voltage:
24VDC
Termination Style:
Spring Terminal
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
title:
LC1D093BL
Coil Power:
-
Must Operate Voltage:
19.2 VDC
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Operate Time:
88.55 ms
Must Release Voltage:
2.4 VDC
standardLeadTime:
5 Weeks
Contact Rating (Current):
9 A
Features:
Auxiliary Contacts, Diode
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Switching Voltage:
690VAC, 300VDC - Max
Release Time:
30 ms
Packaging:
Box
Contact Material:
-
Checking for live stock

3 Pole Contactors, DC Controlled Built-in coil suppression 3 N/O poles Auxiliary contact configuration one N/O, one N/C Operating time closing 12 to 22 ms Operating time opening 4 to 19 ms Note Contactors suffixed BL accept front mount auxiliary contact blocks but only the 2 contact version, they do not accept side mounted contacts. Approvals UL and CSA

pdf icon
Green Premium - Product Environmental Profile(Technical Reference)
pdf icon
Instruction Sheet - LC1D093BL(Technical Reference)
pdf icon
Datasheet_LC1D093BL(Technical Reference)
pdf icon
Product Change Notice (PCN)(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
