Contactor Application:
Resistive Load
Coil Voltage:
120 V ac
Pole and Throw Configuration:
3PST-NO
Width:
90 mm
Contact Current:
9A
Function:
Reversing
Operational Current Ie:
9A
Product Type:
Reversing Contactor
Maximum Operating Temperature:
70°C
Terminal Type:
Screw Clamp
Length:
14cm
Standards/Approvals:
EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2 No. 14, EN 60947-4-1
Number of Auxiliary Contacts:
2
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
DIN Rail
Better World Product:
Yes
Series:
LC2D
Depth:
86mm
Normal State Configuration:
1 NO/1 NC
Contact Voltage:
690V
Power Rating:
4kW
Number of Poles:
3
Minimum Operating Temperature:
-40°C
HTSUS:
8536.49.0065
Coil Voltage:
120VAC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
Switching Voltage:
690VAC, 300VDC - Max
Coil Power:
-
REACH Status:
REACH info available upon request
Must Operate Voltage:
102 VAC
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
22 ms
Must Release Voltage:
36 VAC
standardLeadTime:
5 Weeks
Contact Rating (Current):
9 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
title:

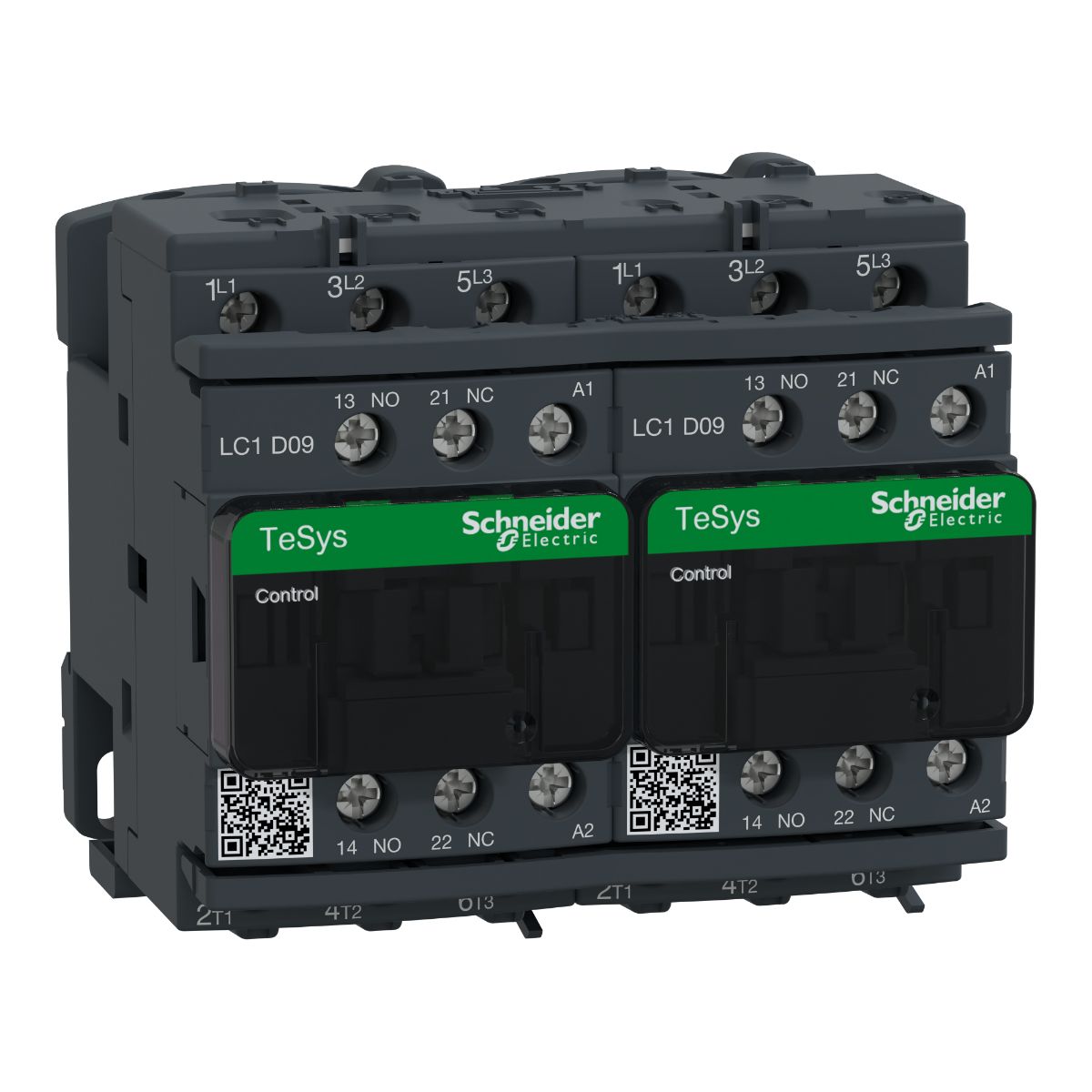

LC2D09G7
Release Time:
19 ms
Packaging:
Box
ECCN:
EAR99
Contact Material:
-
