Contactor Application:
Motor Control, Resistive Load
Coil Voltage:
48 V ac
Pole and Throw Configuration:
3
Width:
85 mm
Contact Current:
95A
Control Circuit Voltage Uc:
48 V
Function:
Motor Control
Operational Current Ie:
95A
Product Type:
Contactor
Maximum Operating Temperature:
60°C
Terminal Type:
Screw
Length:
127mm
Standards/Approvals:
CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, UL
Number of Auxiliary Contacts:
2
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
DIN Rail
Better World Product:
Yes
Series:
LC1D
Depth:
125mm
Normal State Configuration:
3 NO
Contact Voltage:
1kV
Power Rating:
45kW
Number of Poles:
3
Minimum Operating Temperature:
-5°C
Coil Voltage:
48VAC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
title:

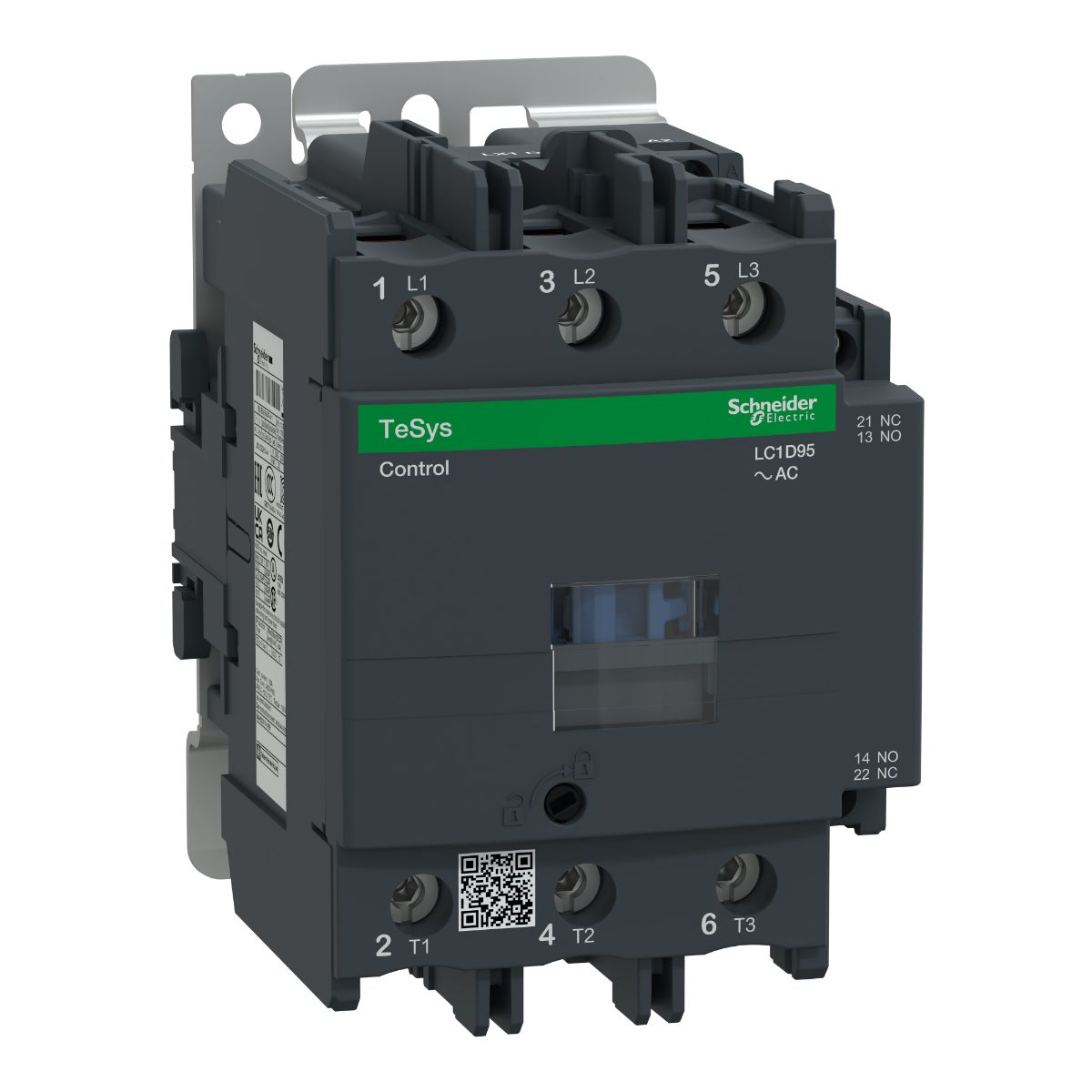

LC1D95E7
Coil Power:
-
Must Operate Voltage:
40.8 VAC
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Operate Time:
35 ms
Must Release Voltage:
14.4 VAC
standardLeadTime:
5 Weeks
Contact Rating (Current):
95 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Switching Voltage:
690VAC - Max
Release Time:
20 ms
Packaging:
Box
Contact Material:
-
