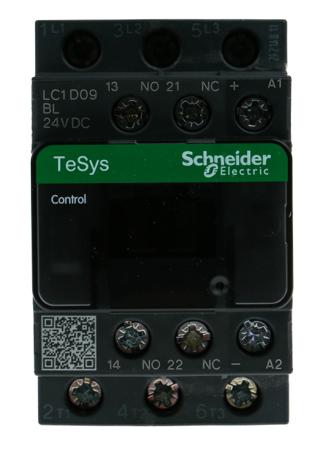

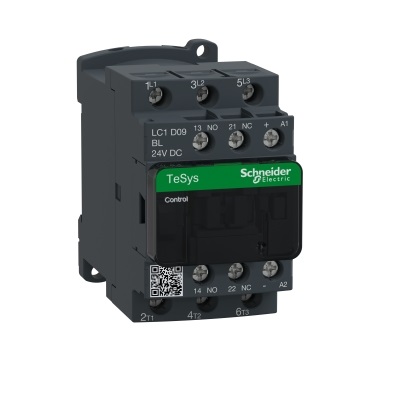

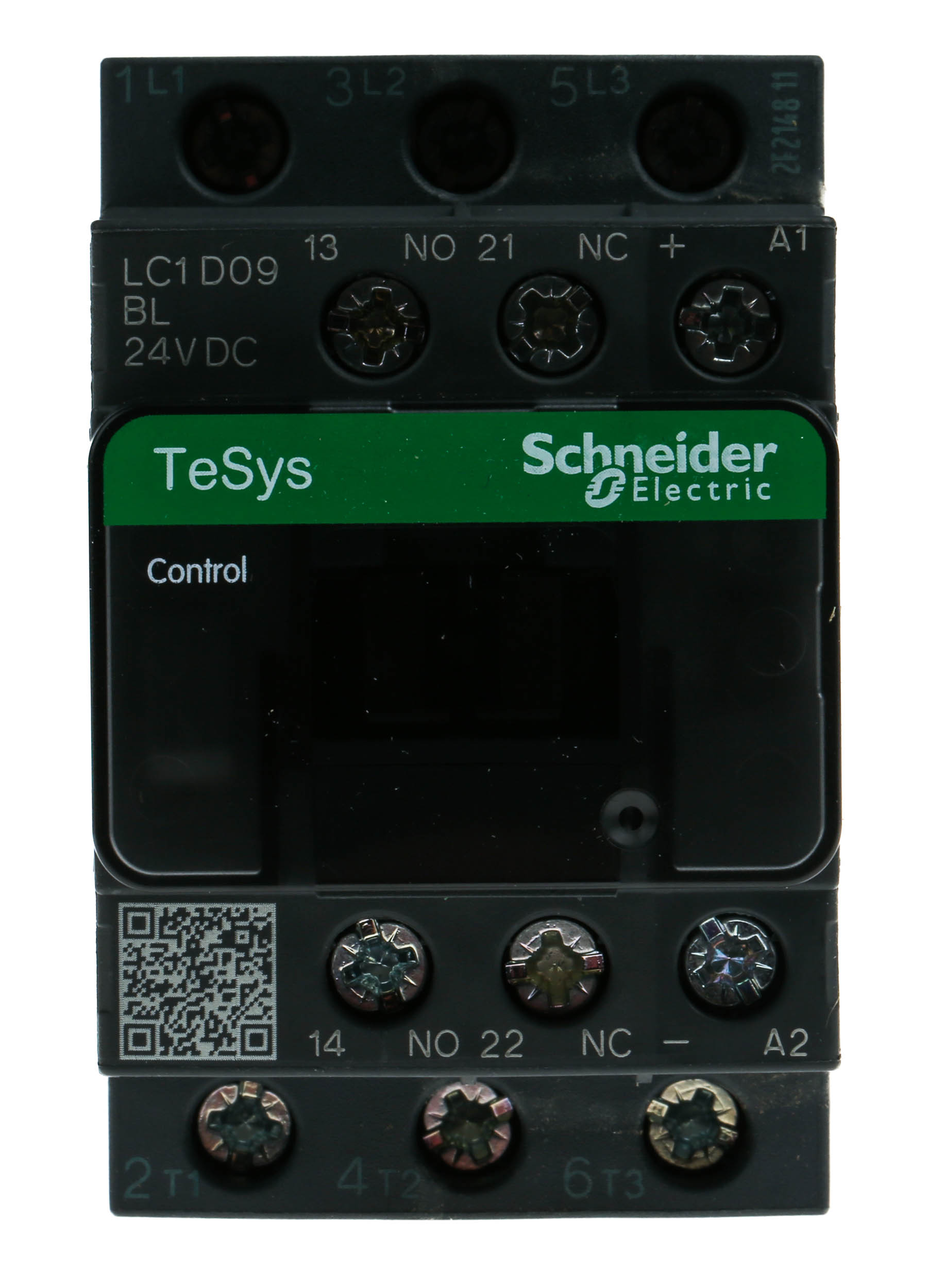

Tesys D LC1D 3 Pole Contactor, 9 A, 4 kW, 24 V dc Coil

LC1D09BL Tesys D LC1D 3 Pole Contactor, 9 A, 4 kW, 24 V dc Coil
LC1D09BL
LC1D09BL
ET14151324
ET14151324
Contactors
Contactors
LC1D09BL Tesys D LC1D 3 Pole Contactor, 9 A, 4 kW, 24 V dc CoilSchneider Electric
LC1D09BL Tesys D LC1D 3 Pole Contactor, 9 A, 4 kW, 24 V dc Coil
Schneider Electric

Product Information

Coil Voltage:
24 V dc
Pole and Throw Configuration:
3P
Width:
45mm
Range:
TeSys D
Function:
Motor Control
Contactor Type:
Motor Contactor
Contact Current Rating:
9 A
Maximum Operating Temperature:
+60°C
Terminal Type:
Screw
Control Voltage:
24 V dc
Length:
77mm
Better World Verification:
Green Premium
Better World Product:
Yes
Series:
LC1D
Depth:
95mm
Mounting Style:
DIN Rail
Number Of Auxiliary Contacts:
2
Normal State Configuration:
3NO
Auxiliary Contact Configuration:
1NO + 1NC
Power Rating:
4 kW
Contact Voltage Rating:
690 V ac
Number of Poles:
3
Minimum Operating Temperature:
-40°C
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount, DIN Rail
Switching Voltage:
690VAC, 300VDC - Max
Series:
TeSys
Contact Form:
3PST-NO (3 Form A)
Coil Voltage:
24VDC
Termination Style:
Screw Terminal
Moisture Sensitivity Level (MSL):
Not Applicable
Packaging:
Box
Operating Temperature:
-40°C ~ 70°C
Must Release Voltage:
2.4 VDC
standardLeadTime:
5 Weeks
Contact Rating (Current):
9 A
Must Operate Voltage:
19.2 VDC
Manufacturer:
Schneider Electric
Checking for live stock

3 Pole Contactors, DC Controlled Built-in coil suppression 3 N/O poles Auxiliary contact configuration one N/O, one N/C Operating time closing 12 to 22 ms Operating time opening 4 to 19 ms Note Contactors suffixed BL accept front mount auxiliary contact blocks but only the 2 contact version, they do not accept side mounted contacts. Approvals UL and CSA

pdf icon
Datasheet LC1D09BL(Technical Reference)
pdf icon
Instruction Sheet - LC1D Series(Technical Reference)
pdf icon
UL E164862(Technical Reference)
pdf icon
CSA 43364(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
