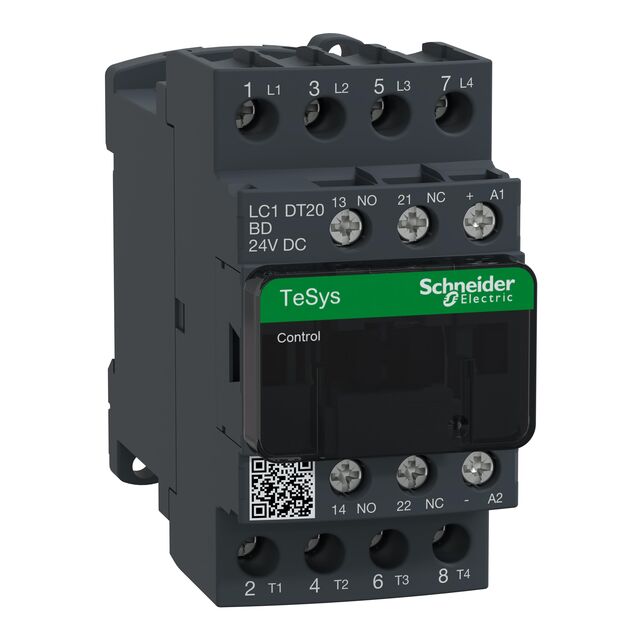

Tesys D LC1D 4 Pole Contactor, 20 A, 24 V dc Coil

Enrgtech Part No: ET14050989
|
Manufacturer Part No:
LC1DT20BD
|
Manufacturer: Schneider Electric

LC1DT20BD Tesys D LC1D 4 Pole Contactor, 20 A, 24 V dc Coil

Product Information

Contactor Application:

Resistive Load

Coil Voltage:

24 V dc

Pole and Throw Configuration:

Width:

45 mm

Contact Current:

20A

Distrelec Product Id:

30401278

Control Circuit Voltage Uc:

24 V

Function:

Motor Control

Operational Current Ie:

20A

Product Type:

Contactor

Maximum Operating Temperature:

60°C

Terminal Type:

Screw

Checking for live stock

The Schneider Electric LC1DT20BD is a versatile 4-pole TeSys D contactor engineered for efficient control of non-inductive resistive loads up to 20A at 440V AC. Equipped with a 24V DC standard coil and an integrated transient suppressor, it ensures stable operation and longevity in demanding industrial environments. This compact 45mm wide unit features 1NO+1NC built-in auxiliary contacts. It supports both DIN rail and screw mounting, providing a reliable and flexible solution for modern motor starters and distribution systems.

Why Should You Buy the Product?

The Schneider Electric LC1DT20BD contactor offers unmatched mechanical durability and high-speed switching for heavy-duty industrial applications. Its "Green Premium" compliance and multi-standard certifications ensure it meets the highest global safety and environmental requirements.

Supports up to 3600 switching cycles per hour for intense workloads.
Built-in bidirectional diode suppressor protects the coil from voltage peaks.
High mechanical lifespan of 30 million operations ensures long-term reliability.

Feature Highlights & Applications Areas

Key Features:
4-pole (4 NO) configuration for non-inductive loads.
Integrated 1NO + 1NC auxiliary contacts for feedback.
Standard 24V DC control circuit voltage.
IP20 finger-safe screw clamp terminals.
Uses:
HVAC systems and climate control.
Resistive heating and lighting distribution.
Industrial automation and motor starter combinations.
Food production and material handling equipment.

Green Premium - Product Environmental Profile(Technical Reference)

Datasheet LC1DT20BD(Technical Reference)

Instruction Sheet - LC1D(Technical Reference)

Product Change Notice (PCN)(Technical Reference)

Product Environmental Profile(Technical Reference)
