Coil Voltage:
24 V ac
Pole and Throw Configuration:
3P
Width:
85 mm
Contact Current:
80A
Control Circuit Voltage Uc:
24 V ac 50/60 Hz
Product Type:
Contactor
Maximum Operating Temperature:
70°C
Terminal Type:
Screw
Minimum Operating Temperature:
-40°C
Length:
127mm
Standards/Approvals:
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ, CSA C22.2 No 60947-4-1, UL, CCC, CSA, Marine, UKCA, EAC, CB Scheme
Number of Auxiliary Contacts:
2
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
Rail
Better World Product:
Yes
Series:
LC1D
Depth:
130mm
Normal State Configuration:
3 NO
Contact Voltage:
600V ac
Power Rating:
37kW
Number of Poles:
3
Coil Voltage:
24VAC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 60°C
Coil Resistance:
-
title:

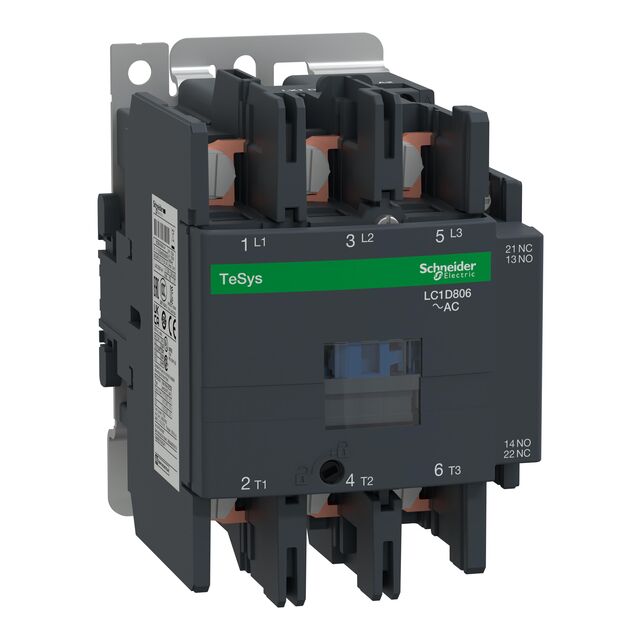

LC1D806B7
Coil Power:
-
Must Operate Voltage:
-
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Operate Time:
35 ms
Must Release Voltage:
-
standardLeadTime:
5 Weeks
Contact Rating (Current):
80 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount
Series:
TeSys
Switching Voltage:
690VAC - Max
Release Time:
20 ms
Packaging:
Box
Contact Material:
-
