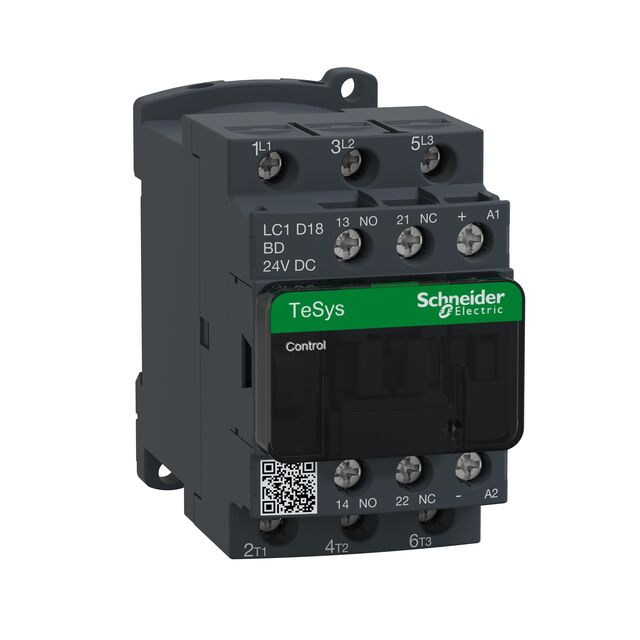

Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 18 A, 9 kW, 24 V dc Coil

LC1D18BD Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 18 A, 9 kW, 24 V dc Coil
LC1D18BD
LC1D18BD
ET14050905
ET14050905
LC1D18BD Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 18 A, 9 kW, 24 V dc Coil
Schneider Electric

Product Information

Better World Verification:
Green Premium
Better World Product:
Yes
Maximum Operating Temperature:
+60°C
Contact Current Rating:
18 A
Series:
LC1D
Minimum Operating Temperature:
-5°C
Coil Voltage:
24 V dc
Length:
77mm
Width:
45mm
Depth:
93mm
Number Of Auxiliary Contacts:
2
Normal State Configuration:
3NO
Range:
TeSys D
Power Rating:
7.5 kW
Contact Voltage Rating:
690 V ac
Number of Poles:
3
Terminal Type:
Screw
Coil Voltage:
24VDC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
Switching Voltage:
690VAC, 300VDC - Max
Coil Power:
-
REACH Status:
REACH info available upon request
Must Operate Voltage:
16.8 VDC
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Moisture Sensitivity Level (MSL):
Not Applicable
Operate Time:
72.45 ms
Must Release Voltage:
2.4 VDC
standardLeadTime:
5 Weeks
Contact Rating (Current):
18 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
title:
LC1D18BD
Release Time:
24 ms
Packaging:
Box
Contact Material:
-
RoHs Compliant
Checking for live stock

3 Pole Contactors, DC Controlled Built-in coil suppression 3 N/O poles Auxiliary contact configuration one N/O, one N/C Operating time closing 12 to 22 ms Operating time opening 4 to 19 ms Note Contactors suffixed BL accept front mount auxiliary contact blocks but only the 2 contact version, they do not accept side mounted contacts. Approvals UL and CSA

pdf icon
Datasheet LC1D18BD(Technical Reference)
pdf icon
Green Premium - Product Environmental Profile(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
Instruction Sheet - LC1D Series(Technical Reference)
pdf icon
General(Technical Reference)
