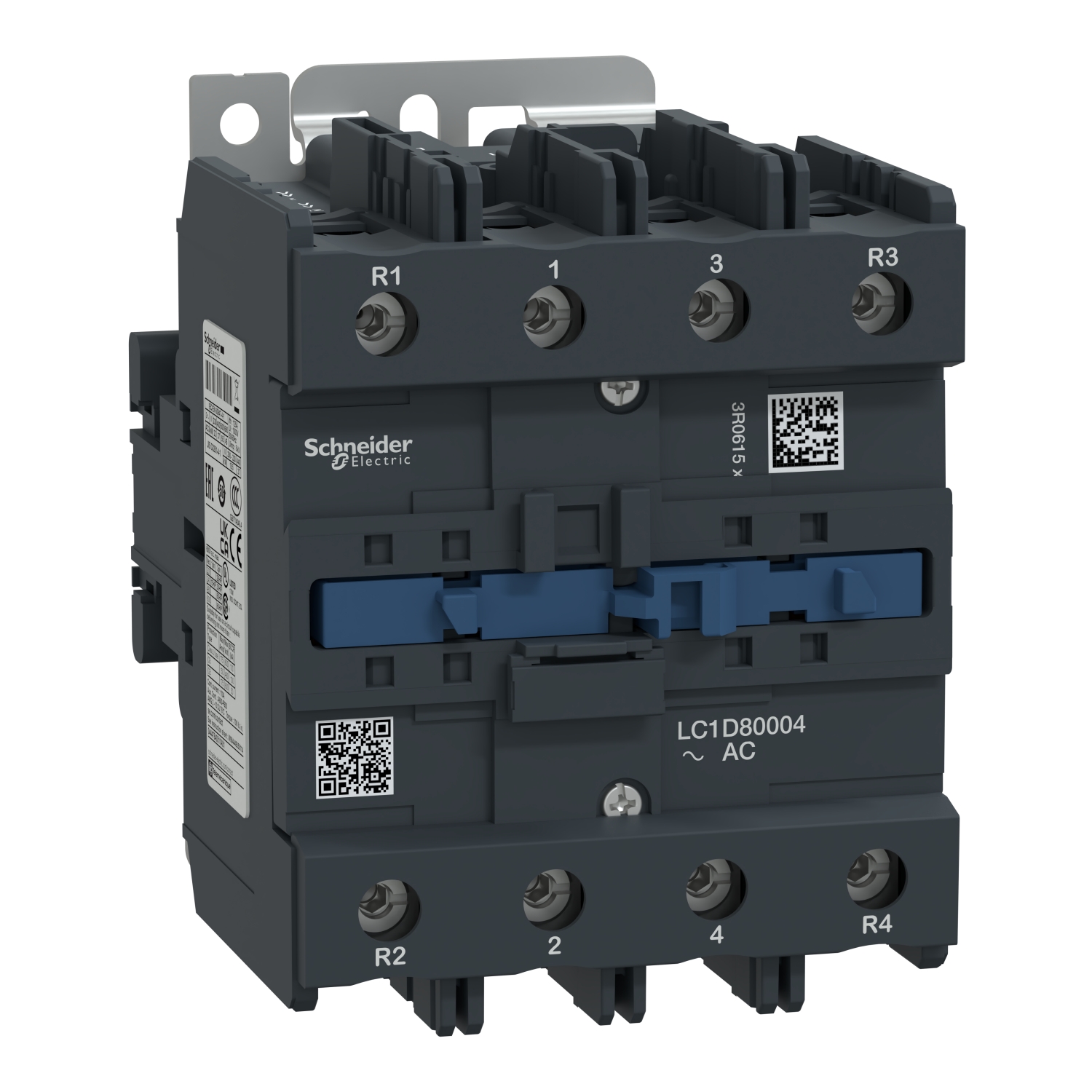

Tesys D LC1D 4 Pole Contactor, 80 A, 230 V ac Coil

Enrgtech Part No: ET13997270
|
Manufacturer Part No:
LC1D80004P7
|
Manufacturer: Schneider Electric

LC1D80004P7 Tesys D LC1D 4 Pole Contactor, 80 A, 230 V ac Coil

Product Information

Contactor Application:

Resistive Load

Coil Voltage:

230 V ac

Pole and Throw Configuration:

Width:

96 mm

Contact Current:

125A

Control Circuit Voltage Uc:

230 V ac

Function:

Motor Control

Operational Current Ie:

125A

Product Type:

Contactor

Maximum Operating Temperature:

60°C

Terminal Type:

Screw

Length:

127mm

Checking for live stock

The Schneider Electric LC1D80004P7 is a heavy-duty, 4-pole contactor from the renowned TeSys Deca series, designed for high-current resistive load applications. Rated for up to 125A in AC-1 categories, this contactor features a 230V AC 50/60Hz coil and a 4NO contact configuration. Its compact 96mm frame allows for efficient panel density, while the high impulse withstand voltage of 8kV ensures operational safety. Built for durability, it supports up to 3,600 cycles per hour, making it an essential component for demanding automation systems.

Why Buy the Product?

The Schneider Electric LC1D80004P7 motor control contactor provides reliable, high-speed switching for heavy electrical loads. Its rugged construction guarantees a long lifespan even under continuous operation.

Superior Load Handling: Efficiently manages non-inductive loads up to 125A at voltages up to 1000V.
Versatile Mounting: Supports both DIN rail and plate mounting for flexible installation in various control panels.

Special Features & Typical Environments

Functional Highlights

High Operating Rate: Capable of executing 3,600 cycles per hour for high-frequency switching tasks.
Multi-Standard Compliance: Certified by UL, CSA, IEC, and CCC for global industrial deployment.
Surge Protection: Built-in resistance against voltage spikes up to 8kV to protect sensitive control circuits.
Modular Compatibility: Easily integrates with auxiliary contact blocks and thermal overload relays.

Typical Applications

Resistive Load Switching: Controlling heating elements, ovens, and industrial furnaces.
Lighting Systems: Managing large-scale commercial or street lighting installations.
HVAC Control: Acting as a power relay for high-capacity industrial air conditioning and ventilation units.

Instruction Sheet - LC1D80004P7(Technical Reference)

Product Environmental Profile(Technical Reference)

Catalogue - Innovative and Connected Solutions for Motor Starters(Technical Reference)

Datasheet LC1D80004P7(Technical Reference)
