Contactor Application:
Resistive Load, Motor Control
Coil Voltage:
24 V dc
Pole and Throw Configuration:
3
Width:
120 mm
Contact Current:
150A
Control Circuit Voltage Uc:
24 V dc
Function:
Motor Control
Operational Current Ie:
150A
Product Type:
Contactor
Maximum Operating Temperature:
60°C
Terminal Type:
Screw
Length:
158mm
Standards/Approvals:
UL, RoHS, IEC, EN 60947-5-1, EAC, CSA, CCC
Number of Auxiliary Contacts:
2
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
DIN Rail
Better World Product:
Yes
Series:
LC1D
Depth:
132mm
Normal State Configuration:
3 NO
Contact Voltage:
1kV ac
Power Rating:
80kW
Number of Poles:
3
Minimum Operating Temperature:
-40°C
Coil Voltage:
24VDC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 60°C
Coil Resistance:
-
title:

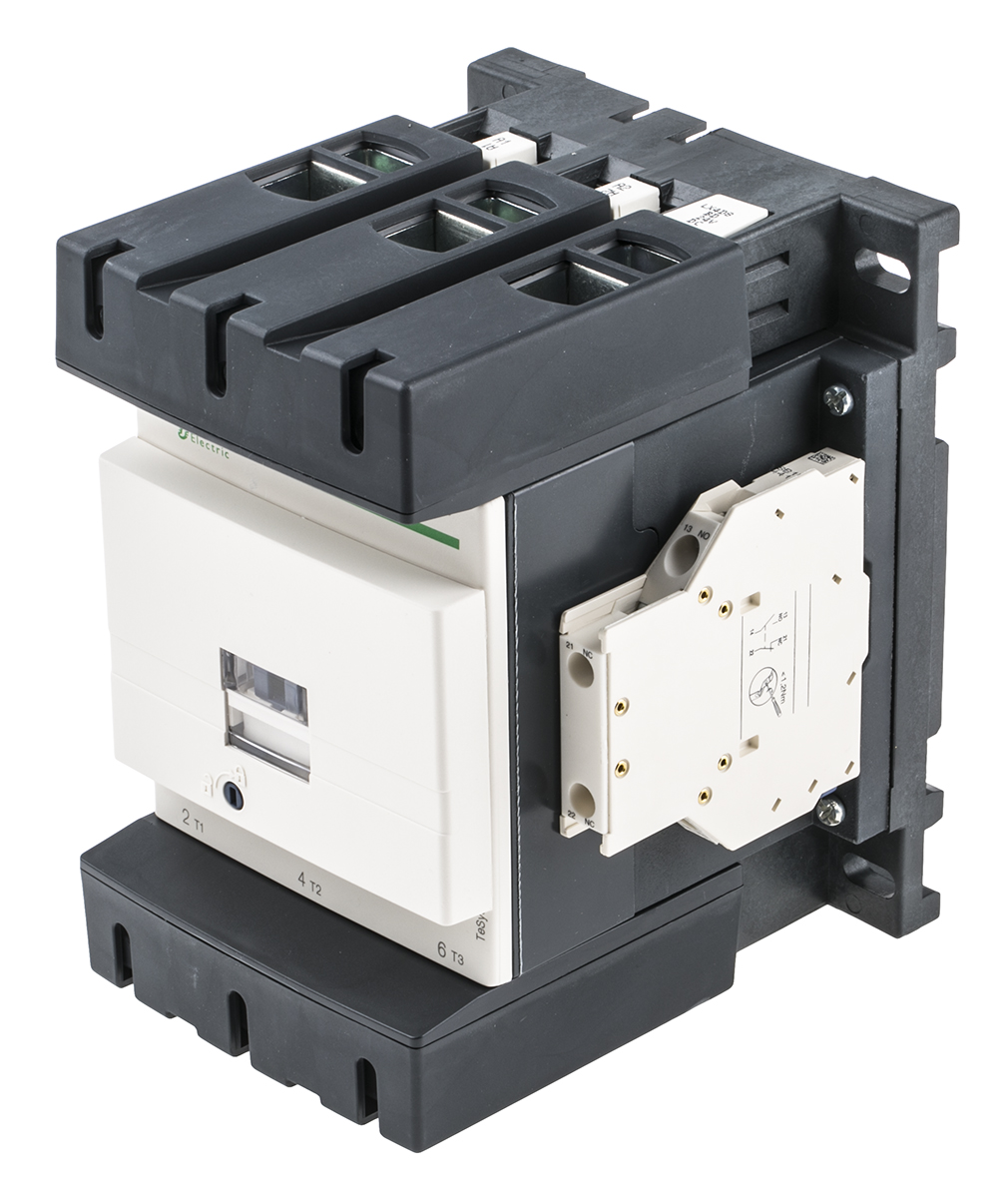

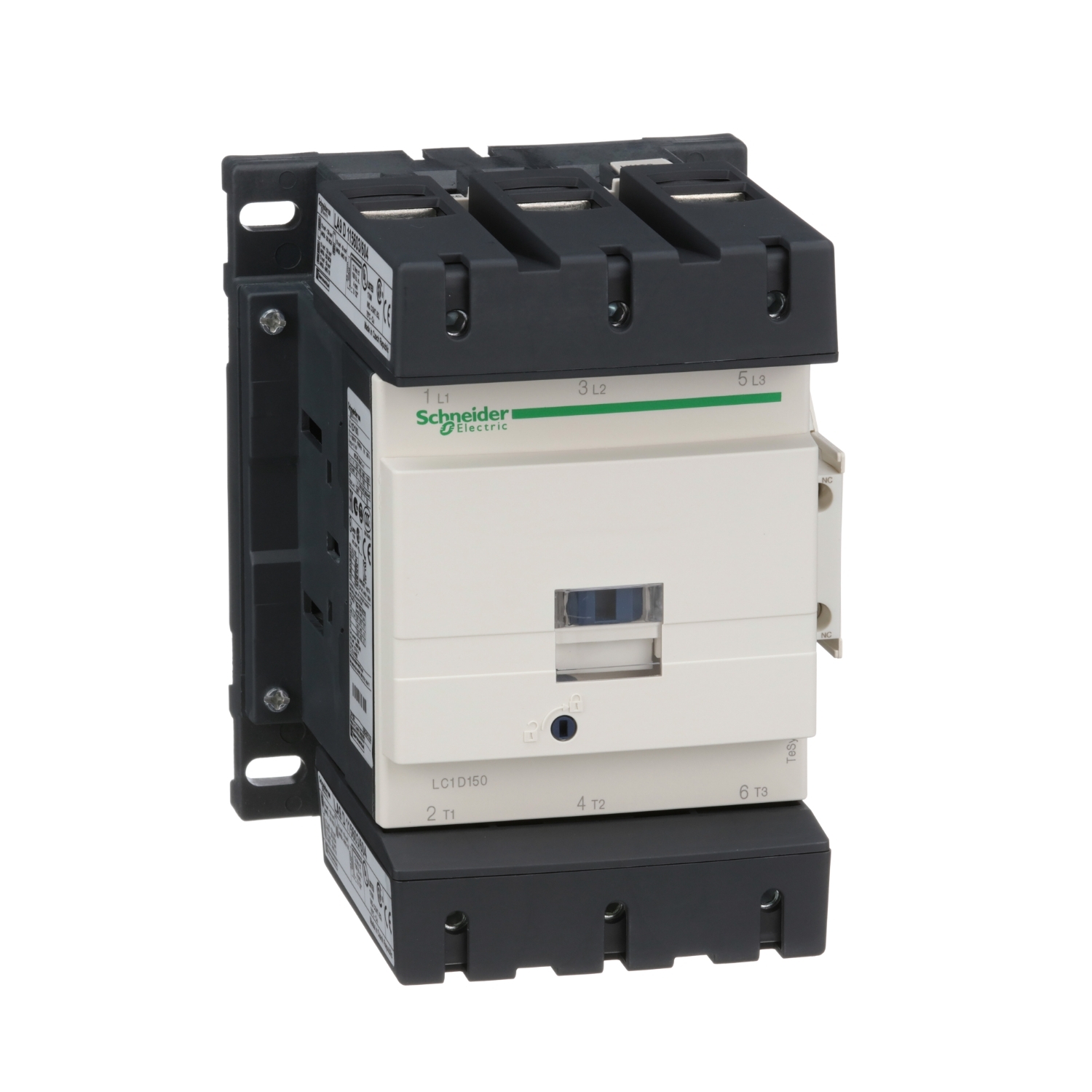

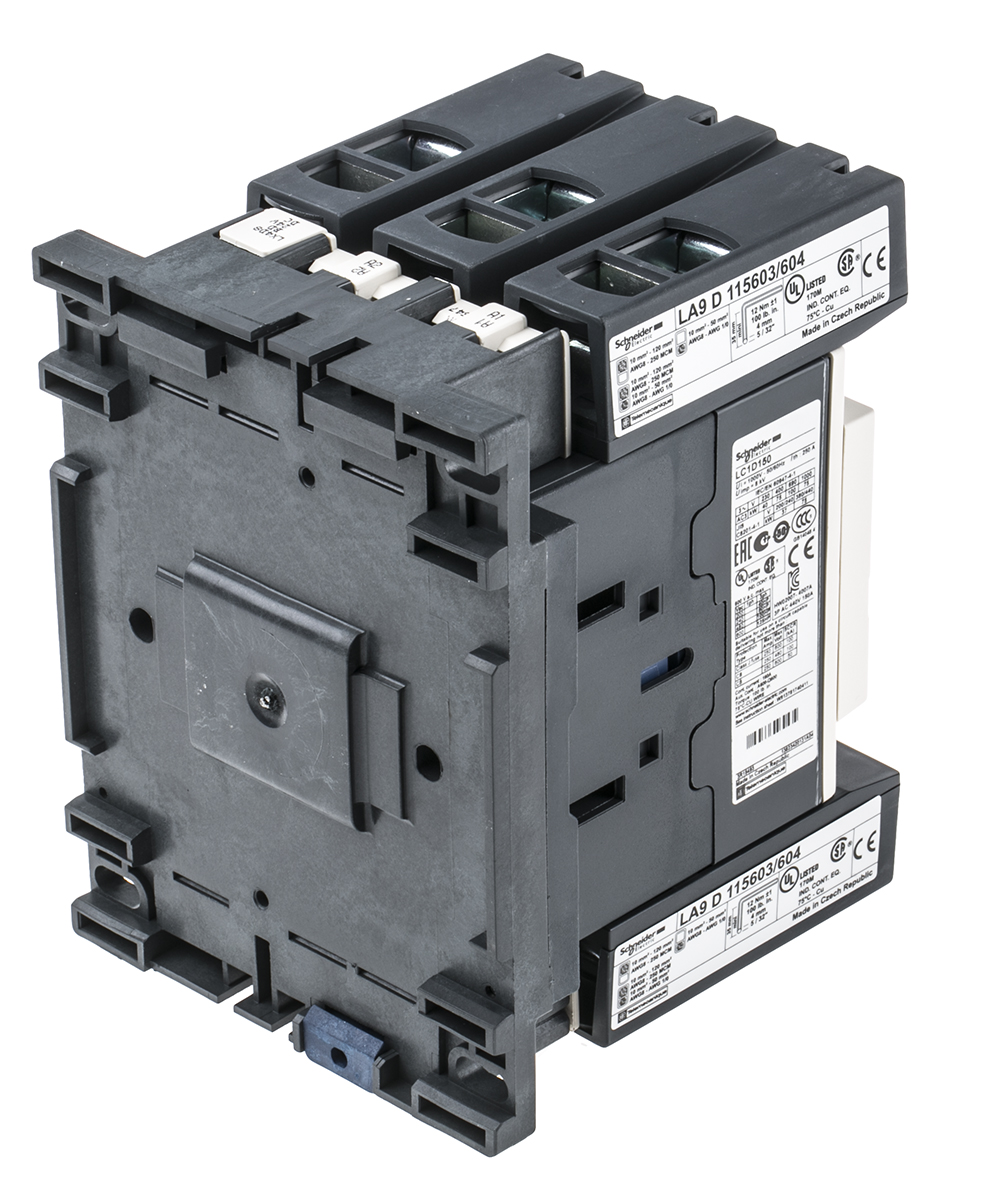

LC1D150BD
Coil Power:
-
Must Operate Voltage:
-
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Operate Time:
35 ms
Must Release Voltage:
-
standardLeadTime:
5 Weeks
Contact Rating (Current):
150 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount
Series:
TeSys
Switching Voltage:
1000VAC - Max
Release Time:
75 ms
Packaging:
Box
Contact Material:
-
