Contactor Application:
Motor Control, Resistive Load
Coil Voltage:
440 V ac
Pole and Throw Configuration:
3
Width:
77 mm
Contact Current:
18A
Control Circuit Voltage Uc:
24 V
Function:
Motor Control
Operational Current Ie:
18A
Product Type:
Contactor
Maximum Operating Temperature:
70°C
Terminal Type:
Screw
Length:
45mm
Standards/Approvals:
CCC, CSA, EAC, IEC, RoHS, UL
Number of Auxiliary Contacts:
2
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
DIN Rail
Better World Product:
Yes
Series:
LC1D
Depth:
84mm
Normal State Configuration:
3 NO
Contact Voltage:
600V ac
Power Rating:
7.5kW
Number of Poles:
3
Minimum Operating Temperature:
-40°C
Coil Voltage:
440VAC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
title:

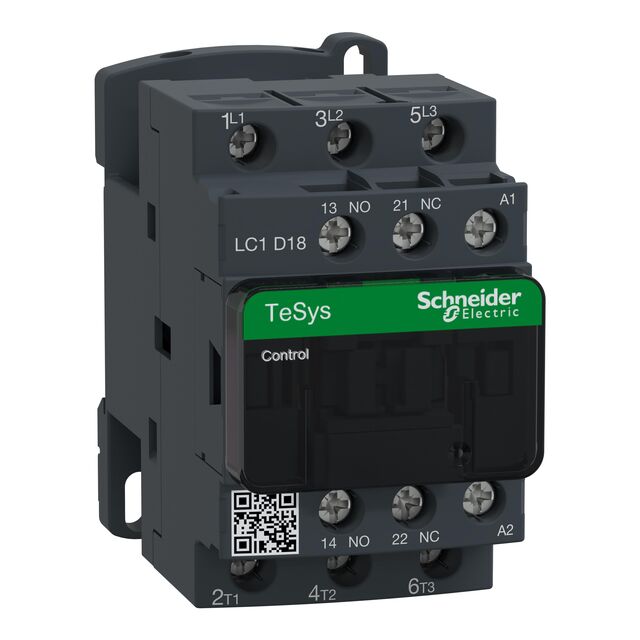

LC1D18R7
Coil Power:
-
Must Operate Voltage:
374 VAC
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Operate Time:
22 ms
Must Release Voltage:
132 VAC
standardLeadTime:
5 Weeks
Contact Rating (Current):
18 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Switching Voltage:
690VAC, 300VDC - Max
Release Time:
19 ms
Packaging:
Box
Contact Material:
-
