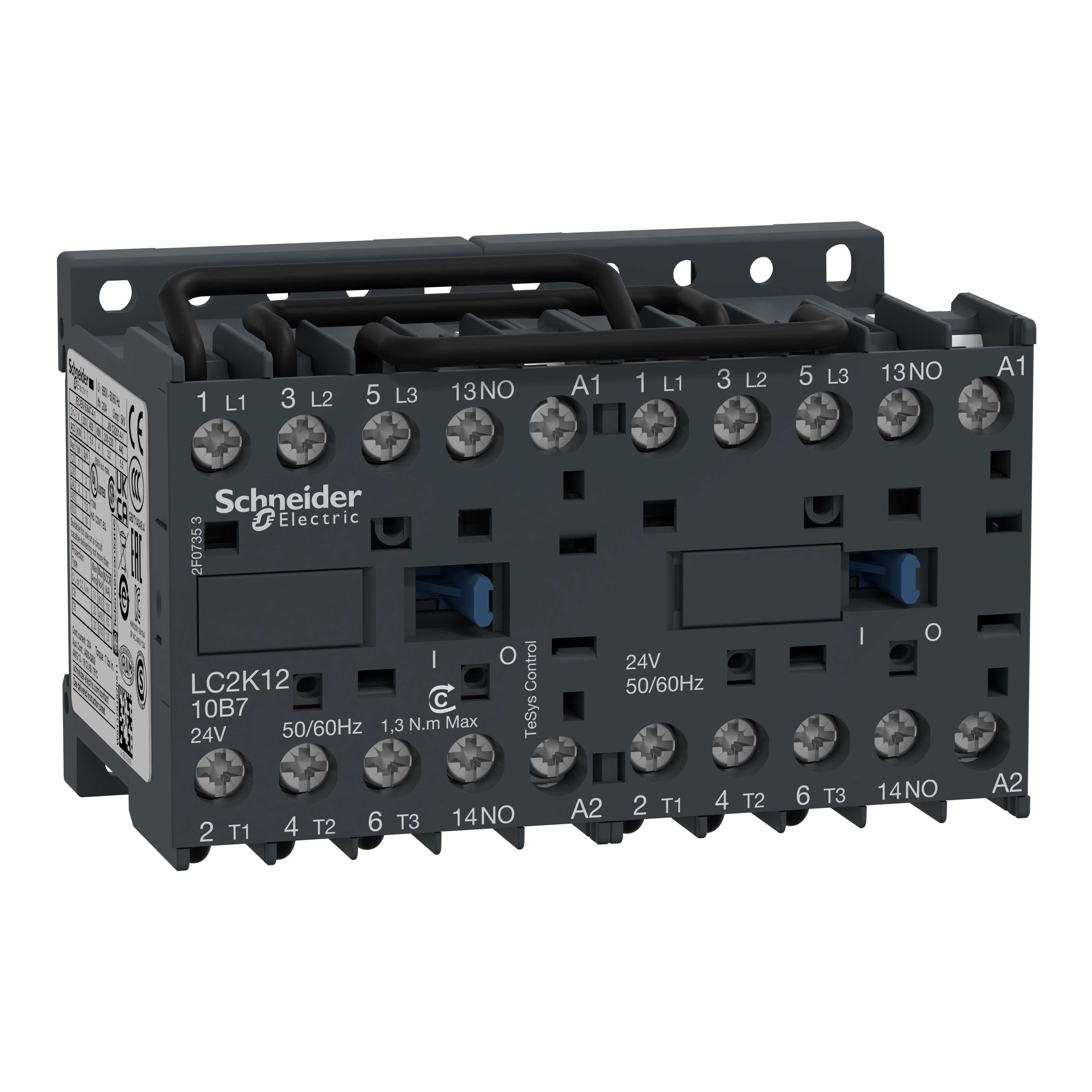

Contactor Application:
Resistive Load, Motor Control
Coil Voltage:
24 V ac
Pole and Throw Configuration:
3
Width:
90 mm
Contact Current:
12A
Control Circuit Voltage Uc:
24 V ac
Function:
Reversing
Operational Current Ie:
12A
Product Type:
Reversing Contactor
Maximum Operating Temperature:
50°C
Terminal Type:
Screw
Length:
58mm
Standards/Approvals:
RoHS, UL, CCC, CSA, EAC, IEC
Number of Auxiliary Contacts:
1
Auxiliary Contact Configuration:
1 NO
Mount Type:
DIN Rail
Better World Product:
Yes
Series:
LC2K
Depth:
57mm
Normal State Configuration:
3 NO
Contact Voltage:
690V ac
Power Rating:
5.5kW
Number of Poles:
3
Minimum Operating Temperature:
-25°C
Coil Voltage:
24VAC
Termination Style:
Screw Terminal
Operating Temperature:
-25°C ~ 50°C
Coil Resistance:
-
Switching Voltage:
690VAC - Max
Coil Power:
-
Must Operate Voltage:
19.2 VAC
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Operate Time:
20 ms
Must Release Voltage:
4.8 VAC
standardLeadTime:
5 Weeks
Contact Rating (Current):
12 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Release Time:
20 ms
Packaging:
Box
Contact Material:
-
