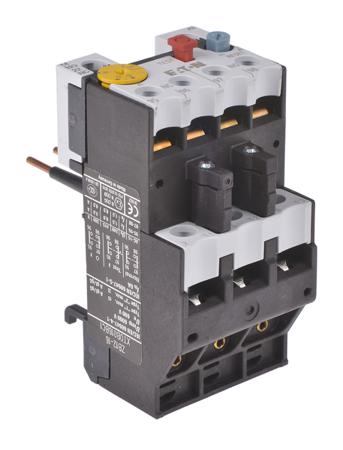

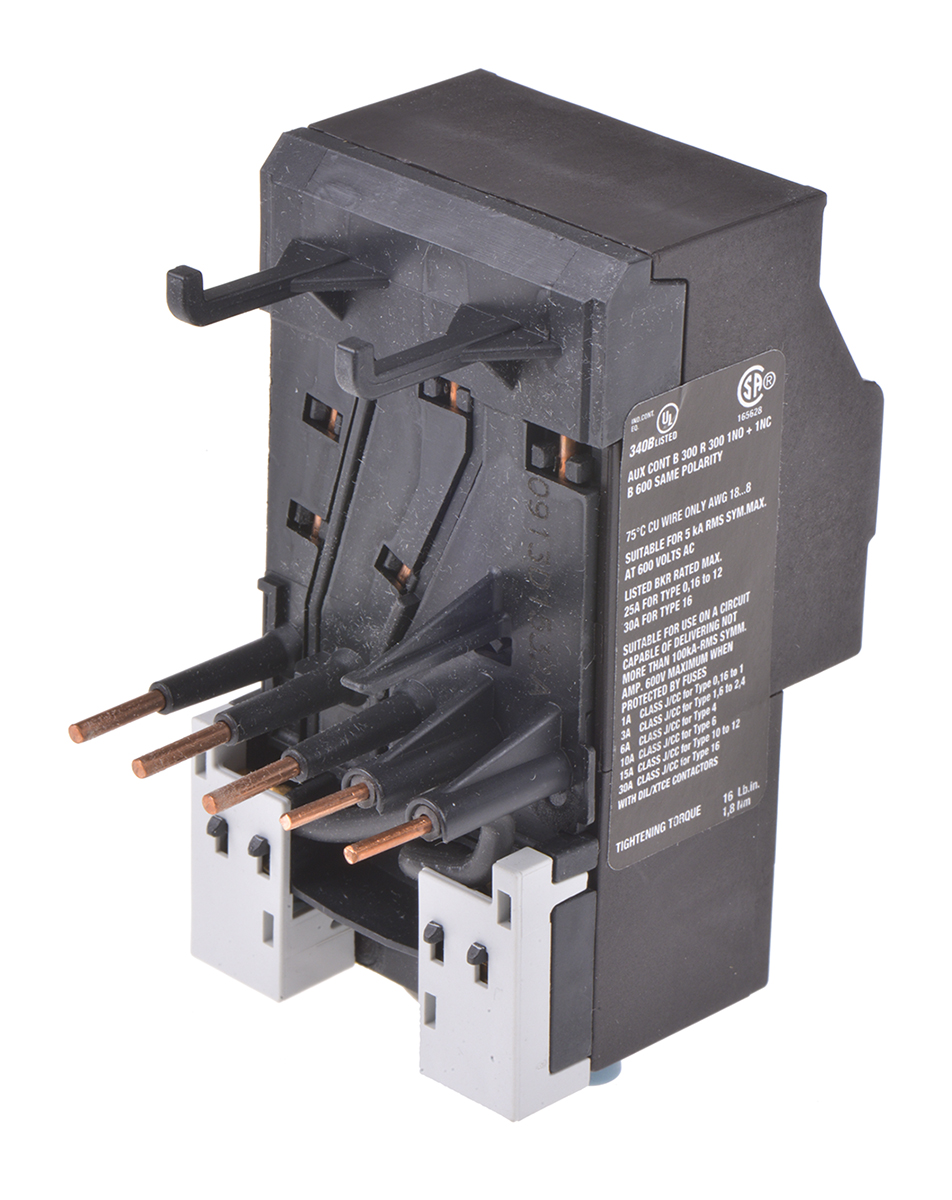

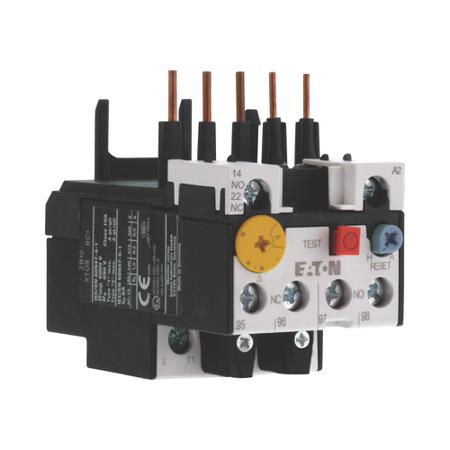

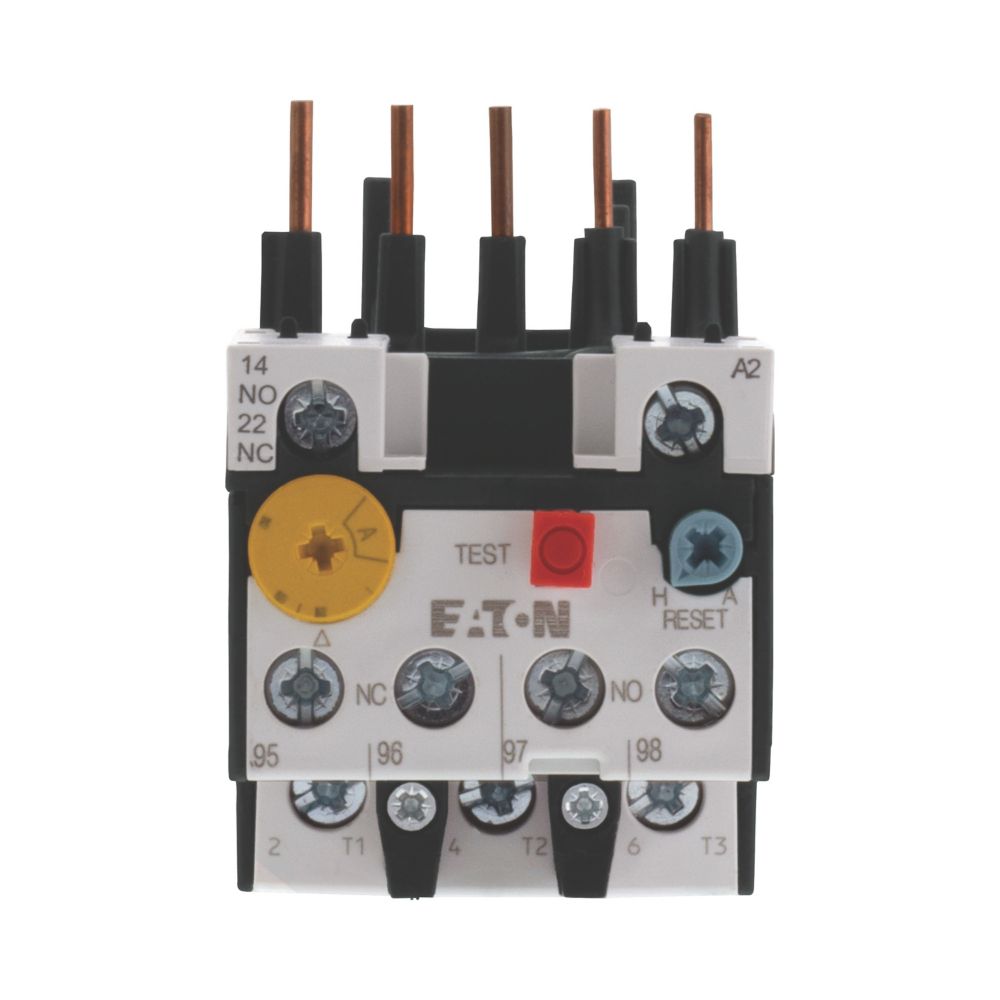

Eaton Overload Relay - 1NO + 1NC, 12 → 16 A F.L.C, 16 A Contact Rating, 6 W, 500 Vac

290168-ZB12-16 Eaton Overload Relay - 1NO + 1NC, 12 → 16 A F.L.C, 16 A Contact Rating, 6 W, 500 Vac
290168 ZB12-16
290168 ZB12-16
ET22732558
ET22732558
Contactor Overload Relays
290168-ZB12-16 Eaton Overload Relay - 1NO + 1NC, 12 → 16 A F.L.C, 16 A Contact Rating, 6 W, 500 Vac
Eaton

Product Information

Width:
45 mm
Supply Voltage:
690 V
Reset Method:
Automatic & Manual
Adjustable Current Range:
12 to 16 A
FLC Motor Rating:
12 to 16 A
Product Type:
Overload Relay
Maximum Operating Temperature:
55°C
Terminal Type:
Screw
Depth:
88mm
IP Rating:
IP20
Control Voltage:
500V ac
Length:
88mm
Standards/Approvals:
CE Approved, UL 60947-4-1, UL Approved, UL Category Control No.:NKCR, VDE 0660, IEC/EN 60947-4-1, E29184, CSA File No.:012528, CSA Class No.:3211-03, CSA-C22.2 No. 60947-4-1-14, CSA Approved, IEC/EN 60947
Number of Auxiliary Contacts:
2
Mount Type:
Direct
Series:
ZB
Relay Contact Current:
16 A
Normal State Configuration:
1 NO/1 NC
Contact Voltage:
690V ac
Power Rating:
6W
Minimum Operating Temperature:
-5°C
RoHs Compliant
Checking for live stock

This is Overload Relay - 1NO + 1NC 12 → 16 A F.L.C 16 A Contact Rating 6 W 500 Vac manufactured by Eaton. The manufacturer part number is 290168 ZB12-16. Furthermore, the product is 45 mm wide. Features 690 v supply voltage. Moreover, it has a/an automatic & manual reset method . It has about 12 to 16 a FLC motor rating . overload relay is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 55°c. The terminal is a screw type. The product comes in 88mm depth. It is IP rated with ip20. It has 500v ac control voltage . Its accurate length is 88mm. It has a direct type mount . The product zb, is a highly preferred choice for users. The normal state configuration includes 1 no/1 nc. Moreover, it has about 690v ac contact voltage . Feature 6w of power rating. Whereas, the minimum operating temperature of the product is -5°c.

pdf icon
ZB12-16 Overload Relay Data Sheet(Technical Reference)
pdf icon
Manual - Motor-Protective Relays(Technical Reference)
pdf icon
Instruction leaflet(Technical Reference)
pdf icon
Instruction Sheet - ZB12/ZB32 Series(Technical Reference)
pdf icon
Short Form Catalogue(Technical Reference)
