Contactor Application:
Control Circuit
Coil Voltage:
24 V dc
Pole and Throw Configuration:
4
Width:
45 mm
Contact Current:
10A
Control Circuit Voltage Uc:
24 V dc
Function:
Control Relay
Product Type:
Contactor
Maximum Operating Temperature:
50°C
Terminal Type:
Screw Clamp
Normal State Configuration:
2 NO/2 NC
Length:
58mm
Standards/Approvals:
CB scheme, CCC, CE, CSA, CSA C22.2 No 60947-4-1, EAC, EN/IEC 60947-4-1, GB/T 14048.4, JIS C8201-4-1, REACH, RoHS, UKCA, UL, UL 60947-4-1, WEEE
Number of Auxiliary Contacts:
4
Auxiliary Contact Configuration:
2 NO/2 NC
Mount Type:
DIN Rail
Better World Product:
Yes
Series:
CA3KN
Depth:
57mm
Minimum Operating Temperature:
-25°C
Contact Voltage:
690V ac
Number of Poles:
4
Coil Voltage:
24VDC
Termination Style:
Screw Terminal
Operating Temperature:
-25°C ~ 50°C
Coil Resistance:
-
title:

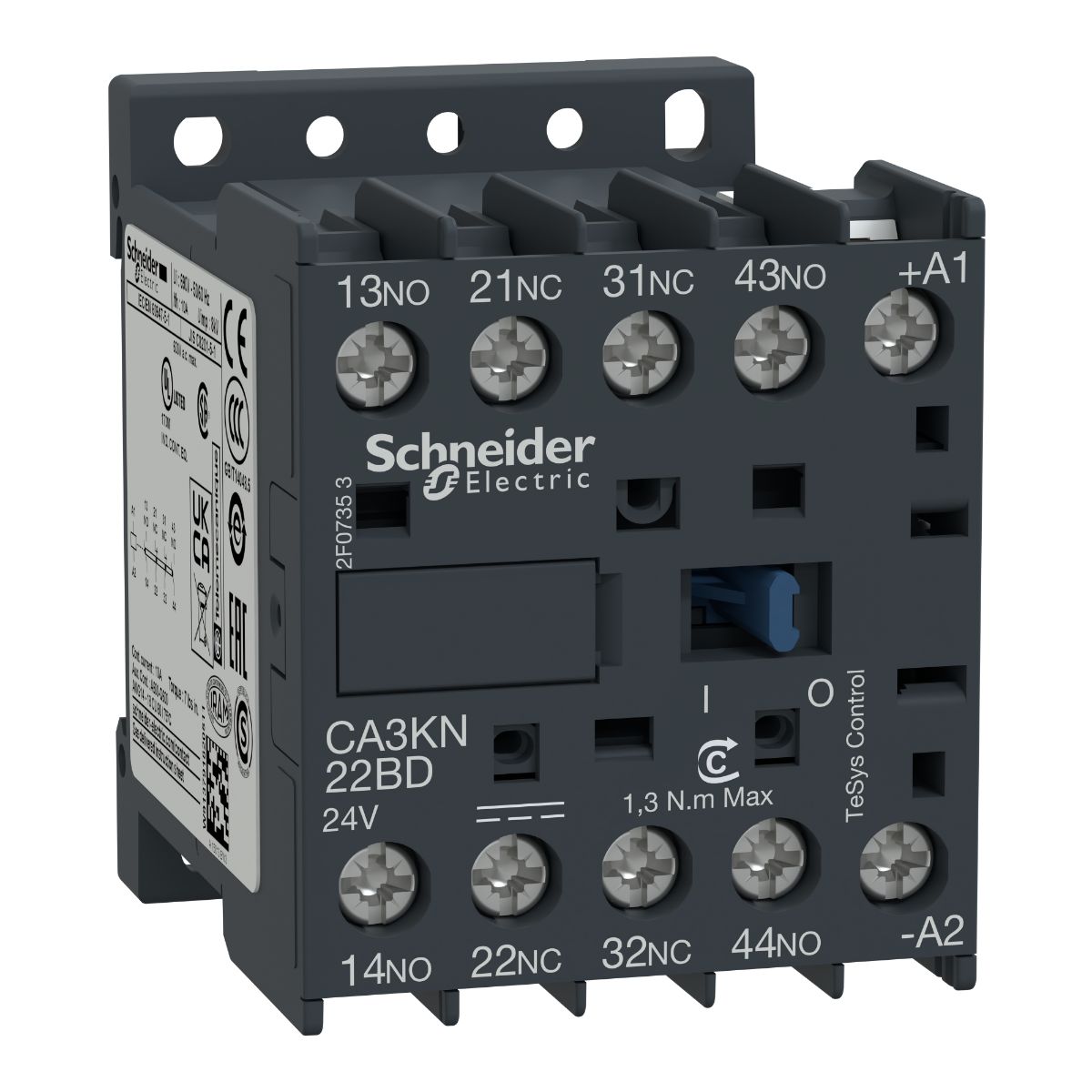

CA3KN22BD
Coil Power:
-
Must Operate Voltage:
19.2 VDC
Manufacturer:
Schneider Electric
Contact Form:
4PST-2NO/2NC (2 Form A, 2 Form B)
Operate Time:
10 ms
Must Release Voltage:
2.4 VDC
standardLeadTime:
5 Weeks
Contact Rating (Current):
10 A
Features:
-
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Switching Voltage:
690VAC - Max
Release Time:
40 ms
Packaging:
Box
Contact Material:
-
