Contactor Application:
Control Circuit
Coil Voltage:
48 V
Pole and Throw Configuration:
5
Width:
45 mm
Contact Current:
10A
Control Circuit Voltage Uc:
48 V
Function:
Control Relay
Product Type:
Contactor
Maximum Operating Temperature:
70°C
Terminal Type:
Screw Clamp
Minimum Operating Temperature:
-40°C
Length:
45mm
Standards/Approvals:
CSA C22.2 No 60947-5-1, CB scheme, CCC, CE, CSA, EAC, EN/IEC 60947-5-1, GB/T 14048.5, JIS C8201-5-1, REACH, RoHS, UKCA, UL, UL 60947-5-1
Number of Auxiliary Contacts:
5
Auxiliary Contact Configuration:
3 NO/2 NC
Better World Product:
Yes
Series:
CAD
Depth:
84mm
Normal State Configuration:
2 NO/2 NC
Contact Voltage:
600V
Number of Poles:
5
Must Release Voltage:
14.4 VAC
Coil Voltage:
48VAC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 70°C
Approval Agency:
CB, CCC, CE, CSA, EAC, UKCA, UL
Coil Type:
Non Latching
title:

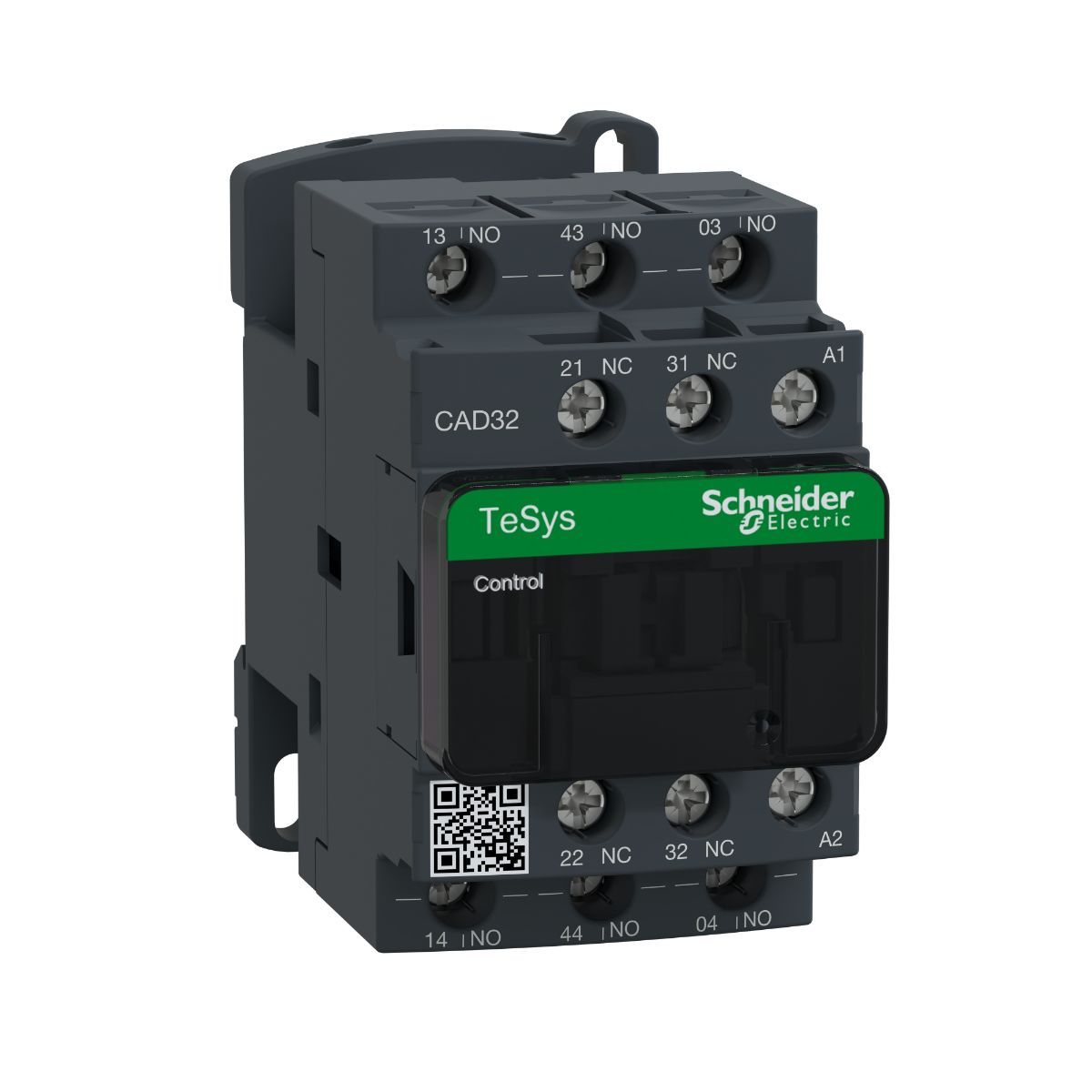

CAD32E7
Seal Rating:
-
Must Operate Voltage:
40.8 VAC
Relay Type:
General Purpose
Load - Max Switching:
-
Contact Form:
5PST-3NO/2NC (3 Form A, 2 Form B)
Operate Time:
22 ms
Qualification:
-
standardLeadTime:
5 Weeks
Contact Rating (Current):
10 A
Features:
-
Mounting Type:
DIN Rail
Grade:
-
Series:
TeSys
Switching Voltage:
690VAC - Max
Release Time:
17 ms
Packaging:
Box
Coil Insulation:
-
Contact Material:
-
