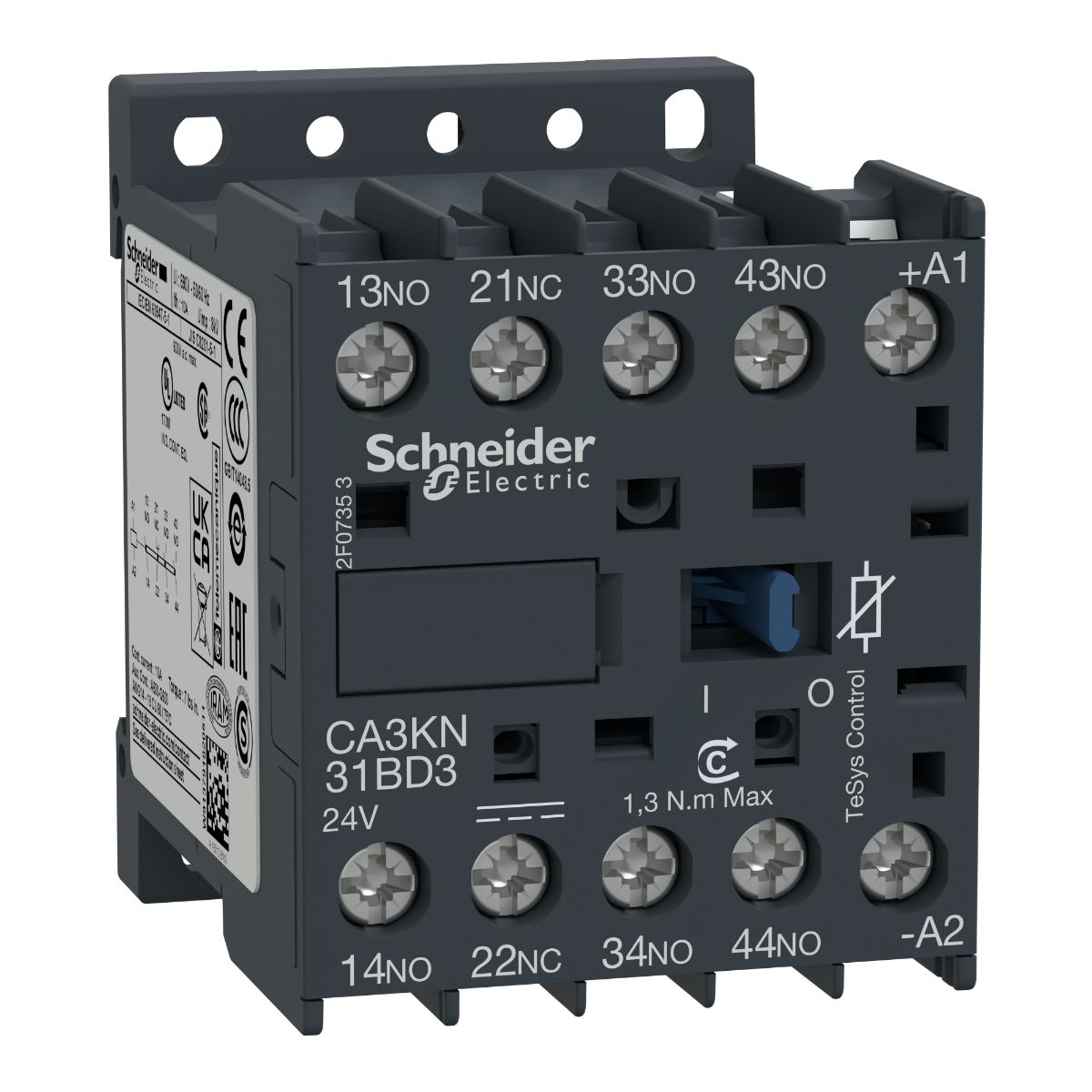

Function:
Control Relay
Better World Product:
Yes
Normal State Configuration:
3 NO/1 NC
Series:
K Control Relays
Minimum Operating Temperature:
-25°C
Length:
58mm
Width:
45 mm
Depth:
57mm
Contact Current:
10A
Control Circuit Voltage Uc:
24 V
Standards/Approvals:
UL 60947-4-1, VDE 0660 EN/IEC 60947-4-1, BS 5424, CCC, CE, CSA, CSA C22.2 No 60947-4-1, EAC, GB/T 14048.4, IEC 60947, JIS C8201-4-1, NF C 63-140, UKCA, UL
Contact Voltage:
690V
Product Type:
Contactor
Maximum Operating Temperature:
50°C
Terminal Type:
Screw Clamp
Mount Type:
Rail
Coil Voltage:
24VDC
Termination Style:
Screw Terminal
Operating Temperature:
-25°C ~ 50°C
Coil Resistance:
-
Switching Voltage:
690VAC - Max
Coil Power:
-
Must Operate Voltage:
19.2 VDC
Manufacturer:
Schneider Electric
Contact Form:
4PST-3NO/1NC (3 Form A, 1 Form B)
Operate Time:
10 ms
Must Release Voltage:
2.4 VDC
standardLeadTime:
5 Weeks
Contact Rating (Current):
10 A
Features:
Diode
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Release Time:
40 ms
Packaging:
Box
Contact Material:
-
