Name: 135-3701-201, Cinch
Brand: Cinch
SKU: ET24732862
Price: 3.26 GBP
Availability: InStock

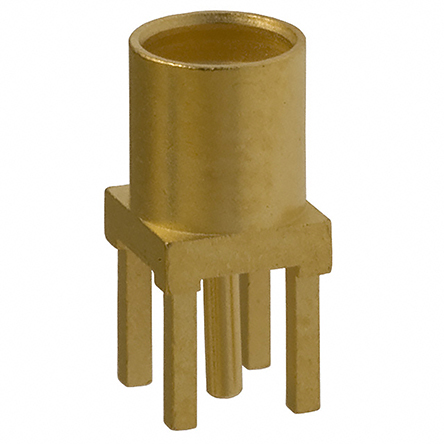

135-3701-201 Cinch Connectors 50Ω Straight PCB Mount, MMCX Connector , jack, RG178/U

(0)

Product Information

Contact Material:

Beryllium Copper

Mating Type:

Quick Connect

Mounting Type:

PCB Mount

Gender:

Female

Body Orientation:

Straight

Cable Type:

RG178/U

Termination Method:

Solder

Coaxial Connector Type:

MMCX Connector

Contact Plating:

Gold over Nickel over Copper

Series:

MMCX

Operating Frequency:

0 to 6GHz

Impedance:

50Ω

Checking for live stock

The 135-3701-201 BNC Connector from Cinch is a professional-grade RF solution designed for dependable, high-frequency signal transmission in demanding environments. This straight cable mount BNC plug delivers superior connectivity for coaxial cables in RF communication, test equipment, broadcast, and surveillance systems.

Moreover, the connector is engineered for RG58/U coaxial cable types, featuring a 50-ohm impedance that ensures optimal signal integrity across a broad frequency range of DC to 4 GHz.

Why Buy this BNC Connector?

With a solder termination method, the 135-3701-201 allows for a secure mechanical and electrical connection, ensuring long-term reliability even in high-vibration or mobile environments. The internal Teflon dielectric insulator supports high thermal stability and enhances electrical performance by reducing signal loss.

Unparalleled Benefits to Users

Reliable Performance: Designed to maintain consistent electrical contact and signal clarity.
Versatile Application: Suitable for RF, CCTV, and broadcast audio-video interfaces.
Rugged Construction: Nickel-plated brass body resists corrosion and mechanical stress.
Precise Fit: Compatible with standard RG58 coax cables, ensuring seamless integration.
Trusted Brand: Cinch is renowned for high-quality interconnect products.

Product Core Features

Impedance: 50 Ohms
Termination Type: Solder
Mounting Type: Cable mount (straight plug)
Material: Brass (Nickel-plated)
Dielectric: PTFE (Teflon)
Frequency Range: DC – 4GHz
Cable Type: RG58/U

Drawing 135-3701-201(Technical Reference)
