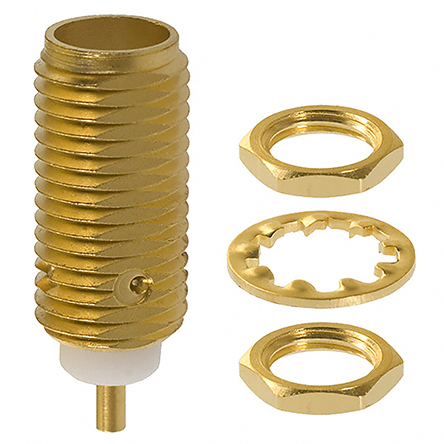

Cinch Connectors 50Ω Straight Panel Mount, SMA Connector , Bulkhead Fitting, jack

Enrgtech Part No: ET24732814
|
Manufacturer Part No:
142-0701-411
|
Manufacturer: Cinch

142-0701-411 Cinch Connectors 50Ω Straight Panel Mount, SMA Connector , Bulkhead Fitting, jack

Product Information

Polarity:

Normal

Contact Material:

Beryllium Copper

Mating Type:

Threaded

Mounting Type:

Panel Mount

Gender:

Female

Body Orientation:

Straight

Termination Method:

Solder

Coaxial Connector Type:

SMA Connector

Bulkhead:

Yes

Contact Plating:

Gold

Series:

SMA

Operating Frequency:

0 to 18GHz

Checking for live stock

The Cinch 142‑0701‑411 is a high-performance 50 Ω bulkhead jack, expertly engineered for demanding RF and microwave applications. Crafted with robust gold-plated brass (body plating: gold over nickel) and a PTFE (Teflon) dielectric, this straight panel-mount SMA female connector ensures exceptional signal integrity up to 18 GHz.

Moreover, this connector features a threaded mating interface and solder-cup termination, ideal for secure and long-lasting electrical connections. Its bulkhead design includes both nut and washer for reliable panel mounting in enclosures, test racks, and communication systems.

Key Features of the SMA Connector

Impedance: 50 Ω
Frequency Range: 0–18 GHz
Termination: Solder Cup
Mounting Type: Panel‑mount bulkhead
Material: Brass body with gold over nickel plating, beryllium copper contacts, PTFE dielectric
Contact Plating: Gold
Operating Temperature: –65 °C to +165 °C

How It Benefits Users

High-Frequency Reliability: Maintains signal clarity with low insertion loss in critical RF/wireless & 5G environments.
Durable Construction: Gold plating and sturdy materials resist corrosion and mechanical stress, ensuring long-term reliability.
Secure Mounting: Straight bulkhead design with included hardware simplifies installation in panel applications.
Precision Fit & Finish: Gold-plated contacts and PTFE dielectric ensure stable electrical performance under varied temperature and environmental conditions.

Why Choose this Product?

This connector is tailored for engineers and procurement professionals seeking a rugged, high-fidelity RF interface in panel-mounted applications. With Cinch’s trusted engineering heritage, the 142‑0701‑411 delivers consistency, durability, and performance by design.

Drawing 142-0701-411(Technical Reference)
