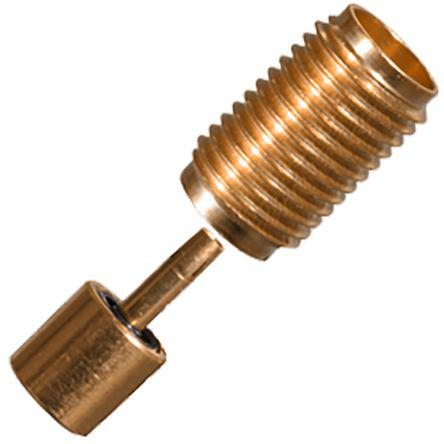

Cinch Straight 50Ω SMA Jack, Solder Termination

Enrgtech Part No: ET16896733
|
Manufacturer Part No:
145-0701-002
|
Manufacturer: Cinch

145-0701-002 Cinch Straight 50Ω SMA Jack, Solder Termination

Product Information

Minimum Operating Temperature:

-65°C

Gender:

Male

Body Orientation:

Straight

Termination Method:

Solder

Coaxial Connector Type:

SMA Connector

Bulkhead:

Contact Plating:

Gold

Series:

SMK

Operating Frequency:

0 to 40GHz

Impedance:

50Ω

Contact Material:

Beryllium Copper

Maximum Operating Temperature:

+165°C

Checking for live stock

The Cinch 145-0701-002 is a precision 2.92 mm SMK female jack designed for panel-mounted, high-frequency RF systems. Engineered by Cinch Connectivity Solutions, it ensures superb electrical performance up to 40 GHz, making it the ideal connector for demanding B2B and technical applications, such as 5G communications, test & measurement, and aerospace systems.

Special Features of the Product

Impedance: 50 Ω ensures consistent signal fidelity.
Frequency Range: DC to 40 GHz, performance-grade bandwidth.
Termination: Solder termination offers a robust, low-loss electrical connection.
Mounting: Straight-body, panel‑mount threaded jack for secure installation.

Material Composition

Body: Stainless steel (for mechanical strength and corrosion resistance).
Contact: Gold-plated beryllium copper, superior conductivity and durability.
Dielectric: Air dielectric with support bead design (noted in SMK series for enhanced performance).

Unparalleled Benefits to Users

Ultra-high frequency capability: Supports next-gen RF systems up to 40 GHz.
Robust panel-mount design: Easy to install with a secure threaded attachment.
Premium materials enhance longevity and minimise signal degradation.
Trusted SMK series: Built for professionals requiring precision, consistency, and longevity.

Use Cases

Industrial Environments
Aerospace Settings
Telecommunication

Datasheet(Technical Reference)
