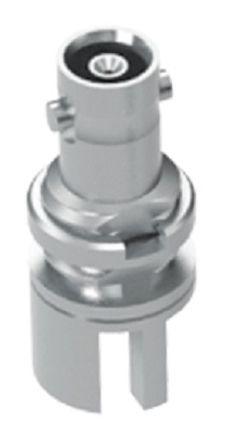

Samtec HD-BNC Series Straight 75Ω PCB Mount BNC Connector, jack, Gold, Edge Mount Termination, Microwave

Enrgtech Part No: ET16786966
|
Manufacturer Part No:
HDBNC-J-P-GN-ST-EM1
|
Manufacturer: Samtec

HDBNC-J-P-GN-ST-EM1 Samtec HD-BNC Series Straight 75Ω PCB Mount BNC Connector, jack, Gold, Edge Mount Termination, Microwave

Product Information

Body Plating:

Gold

Mounting Type:

PCB Mount

Gender:

Female

Body Orientation:

Straight

Cable Type:

Microwave

Termination Method:

Edge Mount

Contact Plating:

Gold

Series:

HD-BNC

Operating Frequency:

0 → 12GHz

Impedance:

75Ω

Contact Material:

Copper Alloy

Size:

Standard

Checking for live stock

This is HD-BNC Series Straight 75Ω PCB Mount BNC Connector jack Gold Edge Mount Termination Microwave manufactured by Samtec. The manufacturer part number is HDBNC-J-P-GN-ST-EM1. The body is gold plated for adorable look and strength. The product is available in pcb mount configuration. In addition, female is the available "Gender" of the product. It has straight body orientation. It is a typical microwave cable. It allows edge mount termination method. The high-quality gold is used as contact plating material. The product hd-bnc, is a highly preferred choice for users. Furthermore, the product has 0 → 12ghz operating frequency range. It has an impedance value of 75ω. The product is made from sturdy copper alloy materials. The product is available in standard size.

Edge mount PCB Mount jack drawing(Technical Reference)
