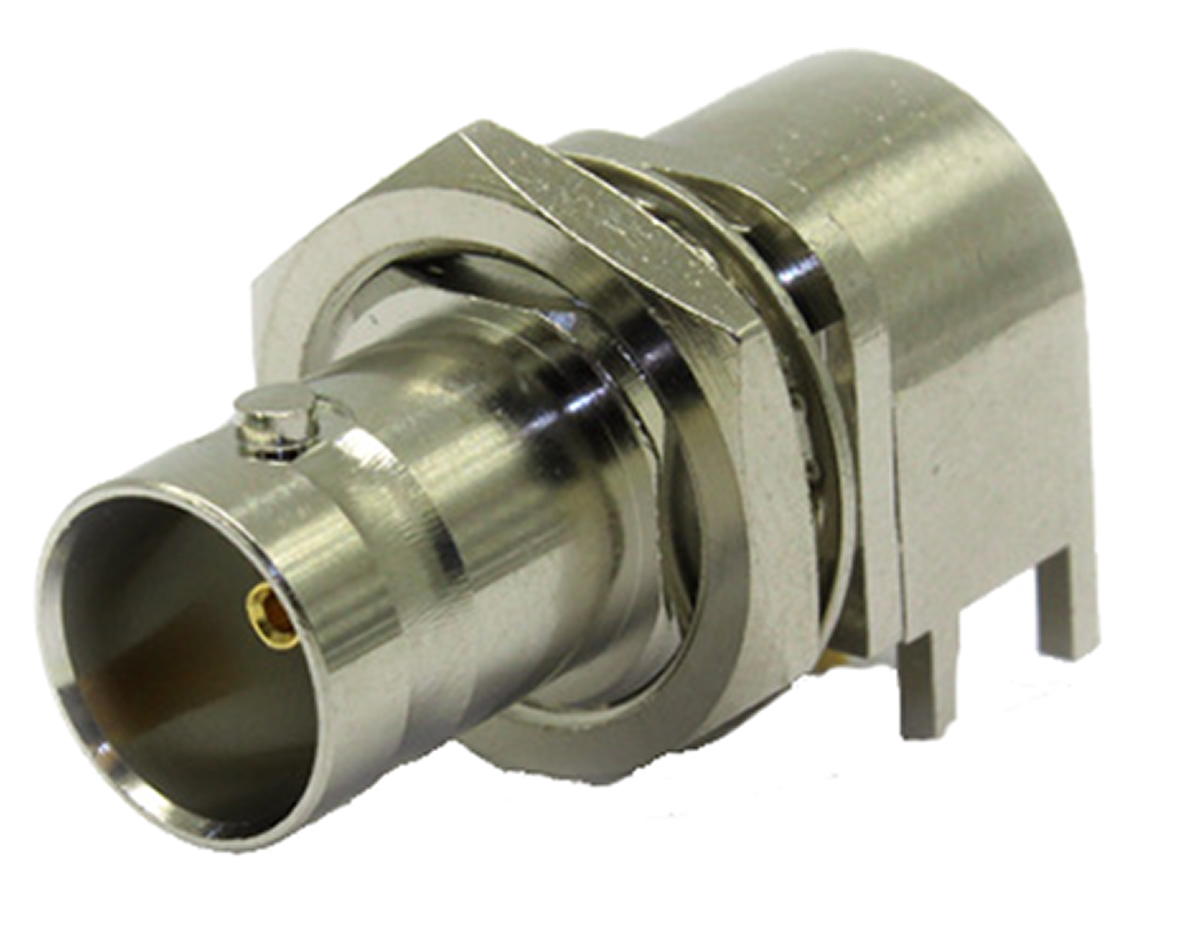

COAX Connectors 10-470-B36, Right Angle 75Ω PCB Mount Bulkhead Fitting BNC Connector, jack, Nickel, Solder Termination

10-470-B36 COAX Connectors , Right Angle 75Ω PCB Mount Bulkhead Fitting BNC Connector, jack, Nickel, Solder Termination
COAX Connectors

Product Information

Body Plating:
Nickel
Mounting Type:
PCB Mount
Gender:
Female
Body Orientation:
Right Angle
Coaxial Connector Type:
BNC Connector
Bulkhead:
Yes
Contact Plating:
Gold
Termination Method:
Through Hole
Operating Frequency:
0 to 3GHz
Impedance:
75Ω
Contact Material:
Phosphor Bronze
Size:
Standard
RoHs Compliant
Checking for live stock

The COAX Connectors 10-470-B36 is a right-angle, 75Ω PCB mount bulkhead fitting BNC connector designed for superior performance in demanding environments. This high-quality jack features a robust nickel-plated finish and solder termination for secure and reliable connections. Its compact design ensures easy integration into various electronic systems, making it ideal for both commercial and industrial applications. The 10-470-B36 offers excellent signal integrity and durability, making it a preferred option for experts seeking dependable connectivity solutions.

Benefits for You

  • Right-angle design for space-saving installations
  • Robust nickel-plated finish for enhanced durability
  • Secure solder termination
  • Ensures high-quality signal transmission
  • Provides long-lasting performance
  • Easy integration into PCB systems

Application Versatility of the COAX Connectors 10-470-B36, Right Angle 75Ω PCB Mount Bulkhead Fitting BNC Connector, jack, Nickel, Solder Termination

  • Broadcast Equipment
  • Telecommunications
  • Test and Measurement Instruments
  • Surveillance Systems

pdf icon
BNC R/A PCB jack data sheet(Technical Reference)
