Manufacturer : Telegartner
Manufacturer Part No : J01020A0045
Enrgtech Part No : ET10003208
Product Range : PolySwitch RXEF Series

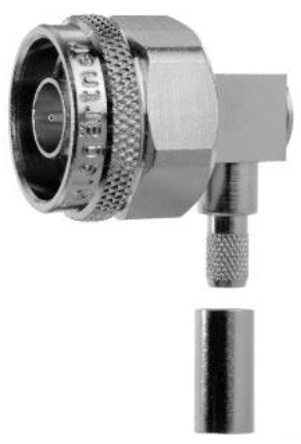

Telegartner 50Ω Right Angle Cable Mount N Type Connector, Plug, Solder Termination, 0 → 11GHz, RG214/U, RG363/U

Telegärtner 50 Ohm N Series Right Angle RF Coaxial Crimp Plug Connectors 50 Ohm N Series weatherproof RF coaxial right angle crimp plug connectors with a screw coupling, crimp termination, nickel plated body and silver plated centre contact. These 50 Ohm N Series RF coax right angle crimp cable plugs have a mating face sealing between the plug and jack according to IP68 and are available for use with a variety of RF coaxial cable types including RG58, RG213 and RG214. Telegärtner N Series RF Connectors Connectors offering excellent intermodulation performance Impedance 50Ω Contact resistance, inner/outer conductor 2mΩ max 0.5mΩ max Body Brass Insulation resistance 5GΩ max Inner Conductor, plug Copper alloy Voltage proof 2.5kV Inner Conductor, socket Beryllium copper Working voltage 1kV Insulator PTFE Frequency range d.c. to 11GHz Plating, body & outer conductor Nickel Climatic characteristic 40/155/21 Plating, inner conductor Silver

Product Information

Body Plating : Copper Nickel Alloy, White Bronze
Mounting Type : Cable Mount
Gender : Male
Body Orientation : Right Angle
Cable Type : RG214/U, RG363/U
Coaxial Connector Type : N Connector
Contact Plating : Silver
Termination Method : Solder
Operating Frequency : 0 to 11GHz
Impedance : 50Ω
Maximum Operating Temperature : +165°C
Minimum Operating Temperature : -65°C
rohs : RoHS Certificate of Compliance
Contact Material : Beryllium Copper, Bronze, Copper Nickel Lead Alloy
