Manufacturer : Radiall
Manufacturer Part No : R161441000W
Enrgtech Part No : ET10003164
Product Range : PolySwitch RXEF Series

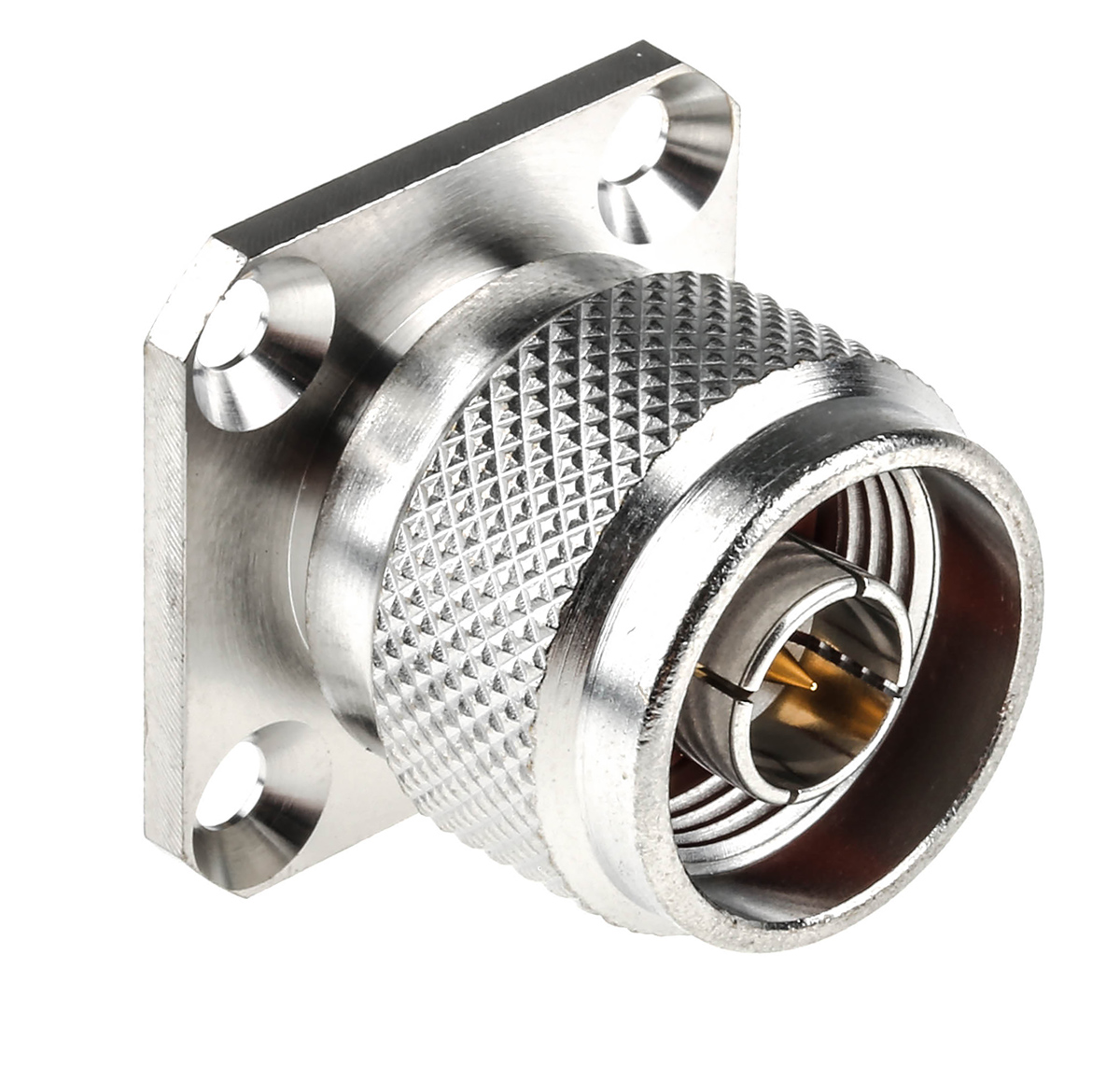

Radiall 50Ω Straight Panel Mount N Type Connector, Plug, Solder Termination, 0 → 11GHz

Male N socket with square flange Male N socket with square flange for front connection. The screw coupling of this connector ensures good HF performance. High permissible power. Mounted using 4 screws - not supplied. Impedance: 50 Ω Recommended operating frequency: 0 → 11 GHz R.O.S.: 1.3 max. Insertion losses: 0.15 dB/m at 10 GHz H.F. leakages: –90 dB min. 2 → 3 GHz Insulation resistance: Min. 5000 MΩ Max. service voltage: 850 V eff. (on the ground) Endurance: 500 operations Operating temperature: –55 °C → +155 °C Materials -  body:  BBR brass -  central contact:  gold-plated brass -  insulation:  PTFE -  seals:  silicone elastomer Radiall BBR (Bronze Blanc Radiall), white bronze plated 50Ω ’N’ connectors meet the demands for reliable, low loss performance required in high frequency communication applications. Low intermodulation Non-magnetic and corrosion resistant Wear and scratch resistant Frequency range dc to 11GHz VSWR (typical) 1GHz 5GHz Straight RG58 1.05 1.1 Straight RG213/214 1.04 1.09 90° RG58 1.04 1018 90° RG213/214 1.04 1.2 Insulation Resistance (min) 5000MΩ Centre Contact Resistance (max) 1.5mΩ Working Voltage RG58 850Vac RG213/214 1400Vac Proof Voltage RG58 1500Vac RG213/214 2500Vac Materials Body Brass Contacts 1GHz Male Brass Female Beryllium copper Insulator PTFE Plating Body White bronze Contacts Gold Crimp tooling Cable Type Cable Group Use Crimp Tools RG58 A 456-431 , 453-870 RG213 T 405-304 RG214 W 405-304

Product Information

Body Plating : Bronze
Mounting Type : Panel Mount
Gender : Male
Body Orientation : Straight
Coaxial Connector Type : N Connector
Contact Plating : Gold over Nickel
Termination Method : Solder
Operating Frequency : 0 to 11GHz
Impedance : 50Ω
Maximum Operating Temperature : +155°C
Minimum Operating Temperature : -55°C
rohs : RoHS Certificate of Compliance
Contact Material : Brass
