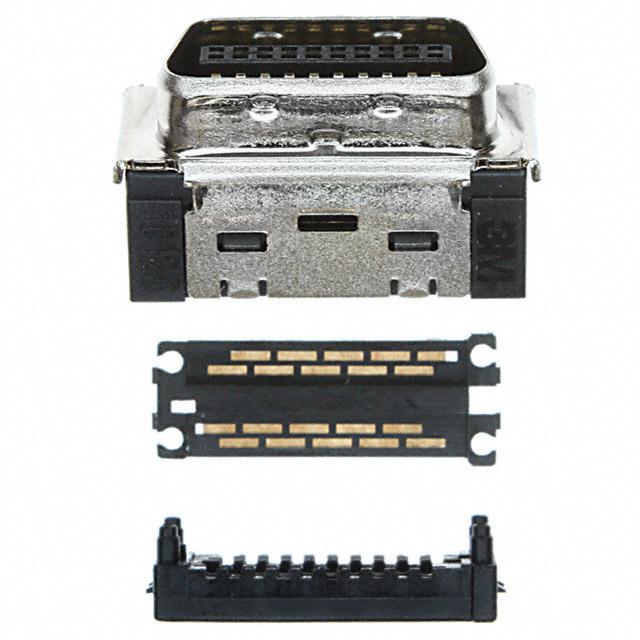

3M 10120-6000EC

10120-6000EC 3M
10120-6000EC
10120-6000EC
ET11282710
3M

Product Information

Series:
101
Current Rating:
1A
Dimensions:
22 x 12.7 x 9.1mm
Mounting Type:
Cable Mount
Gender:
Male
Body Orientation:
Straight
Termination Method:
IDC
Length:
22.0mm
D Connector Type:
Backshell D-Sub
Housing Material:
Steel
Width:
12.7mm
Depth:
9.1mm
D-Sub Shell Size:
D
Contact Plating:
Gold over Nickel
Pitch:
1.27mm
Number of Contacts:
20
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-20.0°C
Contact Material:
Beryllium Copper
Flange Feature:
-
HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Connector Style:
Center Strip Contacts
Contact Finish Thickness:
30.0µin (0.76µm)
Type:
-
Number of Positions:
20
title:
10120-6000EC
REACH Status:
REACH Unaffected
edacadModel:
10120-6000EC Models
Number of Rows:
2
edacadModelUrl:
/en/models/703356
Manufacturer:
3M
Connector Type:
Plug
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
IDC
standardLeadTime:
14 Weeks
Features:
Shielded
Mounting Type:
Free Hanging (In-Line)
Series:
101, Mini D Ribbon (MDR)
Packaging:
Tray
Base Product Number:
10120
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 10120-6000EC. The product 101, is a highly preferred choice for users. The product has a current rating of 1a. The given dimensions of the product include 22 x 12.7 x 9.1mm. The product is available in cable mount configuration. In addition, male is the available "Gender" of the product. It has straight body orientation. It allows idc termination method. Its accurate length is 22.0mm. Additionally, it has a backshell d-sub type connector D . The product also features robust steel housing material. Furthermore, the product is 12.7mm wide. The product comes in 9.1mm depth. Additionally, its D-sub shell is of d size . The high-quality gold over nickel is used as contact plating material. Moreover, the product is 1.27mm. The product contains 20 contacts. It has a maximum operating temperature of +85°c. Whereas, the minimum operating temperature of the product is -20.0°c. The product is made from sturdy beryllium copper materials. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. It comes in center strip contacts connector style. It has 30.0µin (0.76µm) of contact finishing thickness. The product carries possible position value of 20. In addition, it is reach unaffected. It comes in 2 of rows. The 3m's product offers user-desired applications. plug Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features idc termination style. It has a long 14 weeks standard lead time. The splendid features of the product include shielded. The product is available in free hanging (in-line) configuration. The product 101, mini d ribbon (mdr), is a highly preferred choice for users. In addition, tray is the available packaging type of the product. Moreover, it corresponds to 10120, a base product number of the product. The product is designated with the ear99 code number.
