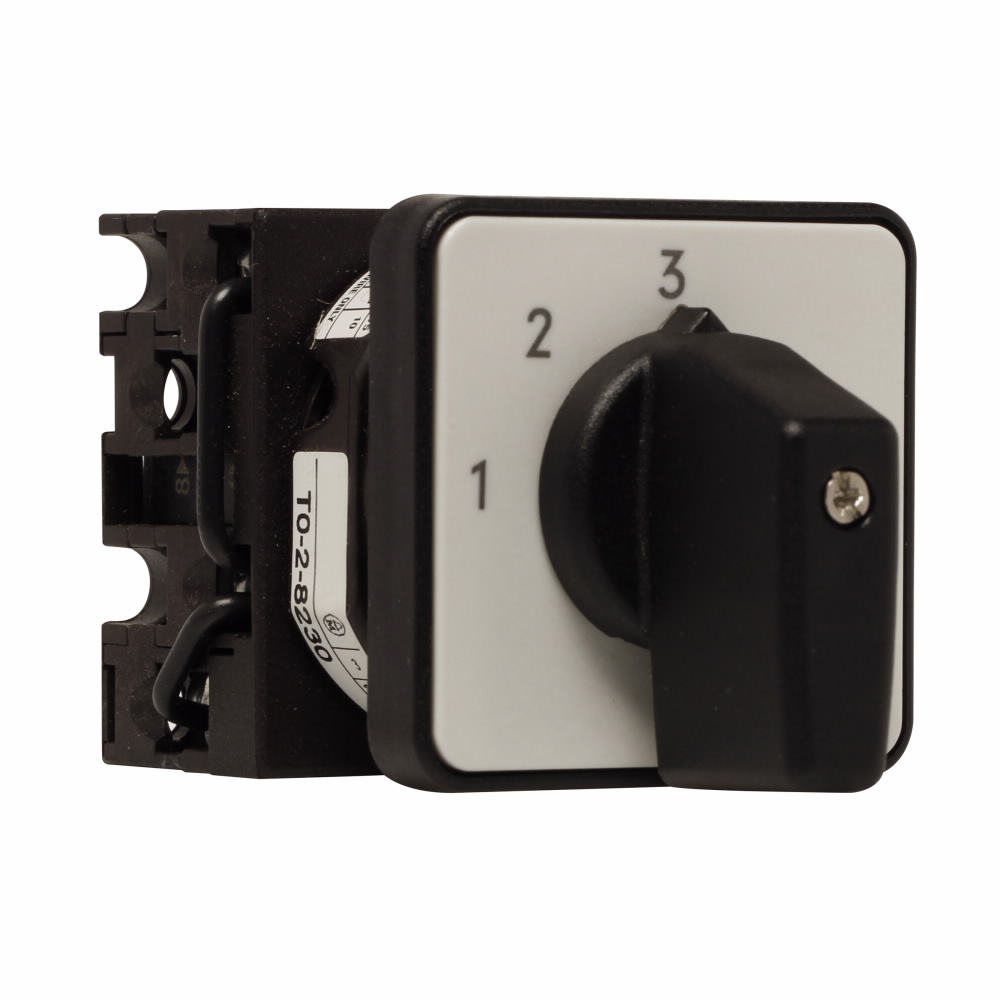

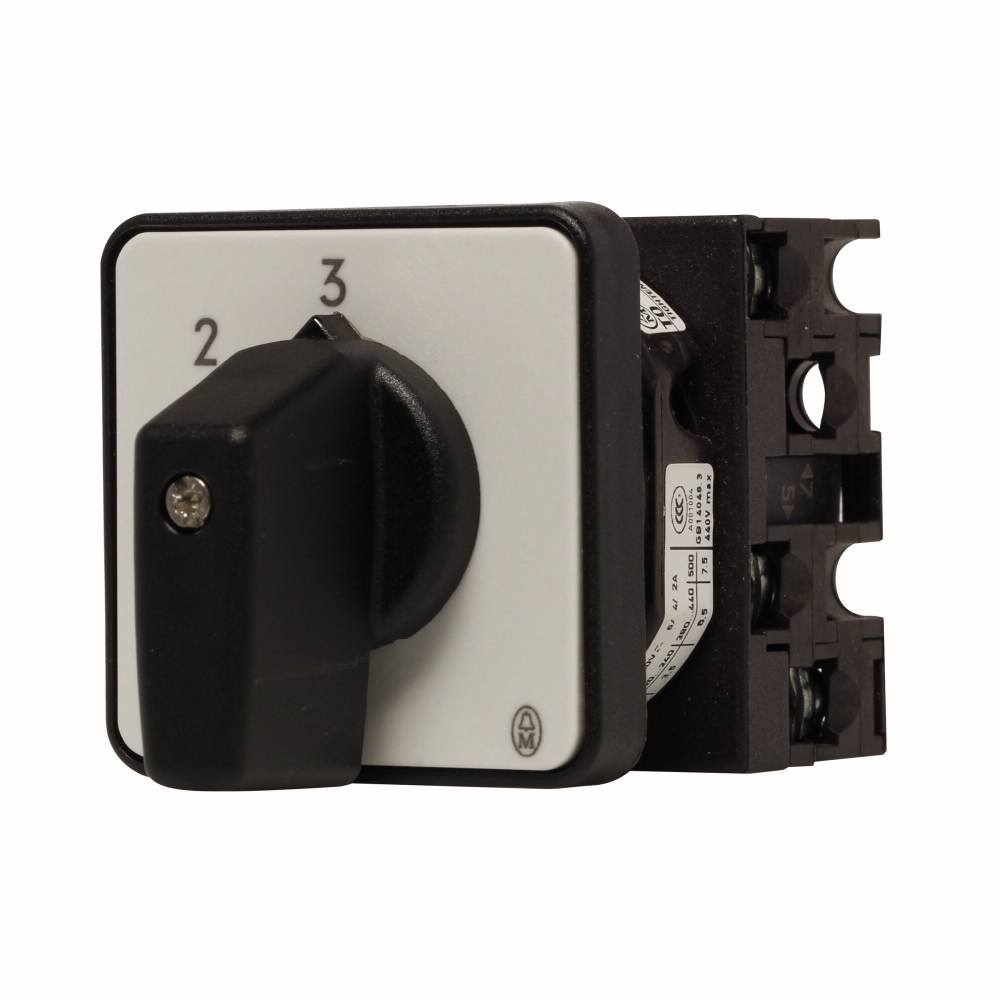

Eaton, SP 3 Position 45° Multi Step Cam Switch, 690V ac, 20A, Toggle Actuator

Enrgtech Part No: ET26411167
|
Manufacturer Part No:
78627334 T0-2-8230/E/EZ-P1(RS257-9637)
|
Manufacturer: Eaton

78627334-T0-2-8230-E-EZ-P1-RS257-9637- Eaton, SP 3 Position 45° Multi Step Cam Switch, 690V ac, 20A, Toggle Actuator

Product Information

Dimensions:

48 x 48 x 100mm

Maximum Current:

20A

Maximum Voltage:

690V ac

Angle of Throw:

45°

Length:

48mm

Number of Positions:

Width:

48mm

Depth:

100mm

Cam Switch Type:

Multi Step Cam Switch

Actuator Type:

Toggle

Pole and Throw Configuration:

Terminal Type:

Screw

Checking for live stock

The Eaton SP 3-Position Multi-Step Cam Switch combines rugged reliability with precise control for industrial environments throughout the UK. Built to handle up to 20 A at 690 V AC, this compact switch features a 45° throw and toggle actuator in a 48 × 48 × 100 mm enclosure. Designed and manufactured to Eaton’s exacting standards and RoHS-compliant, it’s ideal for machinery control panels, process automation and applications where dependable switching in a small footprint is essential.

Exceptional Advantages of Buying the Eaton 78627334, SP 3 Position 45° Multi Step Cam Switch

Toggle-type actuator with screw terminals.
Pole-and-throw configuration: Single-Pole (SP).
RoHS-compliant and industrial-grade build.
Enables precise multi-position switching.
Handles high currents and voltages reliably.
Minimal panel space requirement.
Screwed connections for secure wiring.
Rugged and approved by Eaton’s quality standards.
Ideal for adhering to strict UK electrical safety standards.

Applicable Areas of the Eaton 3 Position Multi-Step Cam Switch, Toggle Actuator

Industrial machinery control panels
Process automation systems
Distribution boards and panel switching
Motor control and testing rigs
Maintenance and retrofit operations

Why Add This Cam Switch to Your Toolkit?

If you’re looking for secure, multi-position control in tight installations, the Eaton 78627334 cam switch is ideal. With 3-position indexing, screw terminals and a spring-loaded toggle actuator, it ensures confident selection and longevity. Plus, its compact form factor makes panel layout simple and an effective smart investment for UK-based engineers and technical teams seeking efficiency and durability.

Switch Configuration Data Sheet(Technical Reference)

DS-088685-T0-2-8230_E-20140925(Technical Reference)

Instruction Sheet - T0 Cam Switches(Technical Reference)

CSA APPROVAL LR 12528(Technical Reference)
