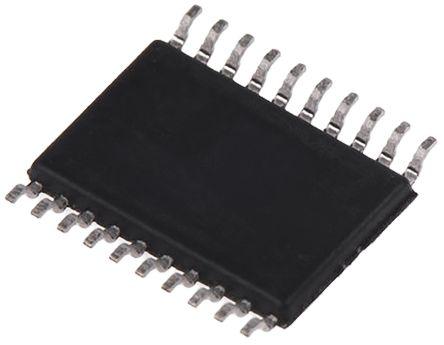

Nexperia 74HC244PW Octal Buffer & Line Driver, 3-State, 2 → 6 V, 20-Pin TSSOP

74HC244PW Nexperia  Octal Buffer & Line Driver, 3-State, 2 → 6 V, 20-Pin TSSOP
74HC244PW
NXP

Product Information

Polarity:
Non-Inverting
Dimensions:
6.6 x 4.5 x 0.95mm
Minimum Operating Supply Voltage:
2 V
Logic Family:
74HC
Width:
4.5mm
Input Type:
CMOS
Maximum Low Level Output Current:
7.8mA
Maximum High Level Output Current:
-7.8mA
Maximum Propagation Delay Time @ Maximum CL:
165ns
Number of Channels per Chip:
8
Output Type:
3 State
Package Type:
TSSOP
Maximum Operating Temperature:
+125 °C
Length:
6.6mm
Pin Count:
20
Maximum Operating Supply Voltage:
6 V
Mounting Type:
Surface Mount
Logic Function:
Buffer, Line Driver
Height:
0.95mm
Minimum Operating Temperature:
-40 °C
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Nexperia Octal Buffer & Line Driver 3-State 2 → 6 V 20-Pin TSSOP manufactured by NXP. The manufacturer part number is 74HC244PW. While providing non-inverting polarity. The given dimensions of the product include 6.6 x 4.5 x 0.95mm. While its minimum operating supply voltage is 2 v. The logic family is 74hc. Furthermore, the product is 4.5mm wide. It carries cmos input type. On the other hand, it is featured with 7.8ma of max. low level output current. While a -7.8ma of maximum high level output current. It provides up to 165ns maximum propagation delay time. It comprises 8 channels per chip. Furthermore, it has a3 state output. The package is a sort of tssop. It has a maximum operating temperature of +125 °c. Its accurate length is 6.6mm. It contains 20 pins. It has 6 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes buffer, line driver. In addition, the height is 0.95mm. Whereas, the minimum operating temperature of the product is -40 °c. Features 50pf of propagation delay test condition.

pdf icon
Octal buffer/line driver - 3-state Datasheet(Technical Reference)
