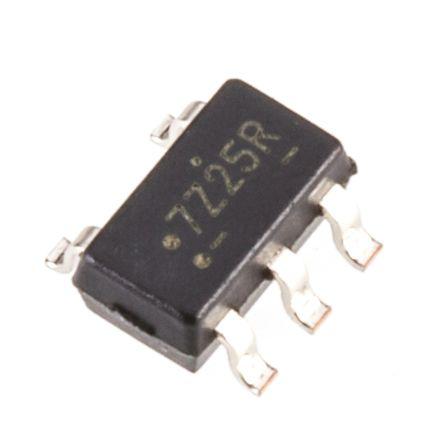

Buffer/Line Driver 1Ch Non-Invert 5SOT23
Product Information
Polarity:
Non-Inverting
Dimensions:
3 x 1.7 x 1.3mm
Minimum Operating Supply Voltage:
1.65 V
Logic Family:
TinyLogic UHS
Width:
1.7mm
Input Type:
Single Ended
Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-32mA
Maximum Propagation Delay Time @ Maximum CL:
5.7 ns @ 3.3 V
Number of Channels per Chip:
1
Output Type:
3 State
Package Type:
SOT-23
Maximum Operating Temperature:
+85 °C
Length:
3mm
Pin Count:
5
Maximum Operating Supply Voltage:
5.5 V
Mounting Type:
Surface Mount
Logic Function:
Buffer, Line Driver
Height:
1.3mm
Minimum Operating Temperature:
-40 °C
Propagation Delay Test Condition:
50pF
Checking for live stock
FAQs
Yes. You can also search NC7SZ125M5X on website for other similar products.
We accept all major payment methods for all products including ET14054881. Please check your shopping cart at the time of order.
You can order Fairchild Semiconductor brand products with NC7SZ125M5X directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Buffer & Line Driver Combinations category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Buffer/Line Driver 1Ch Non-Invert 5SOT23. You can also check on our website or by contacting our customer support team for further order details on Buffer/Line Driver 1Ch Non-Invert 5SOT23.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14054881 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Fairchild Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14054881.
Yes. We ship NC7SZ125M5X Internationally to many countries around the world.
This is Buffer/Line Driver 1Ch Non-Invert 5SOT23 manufactured by Fairchild Semiconductor. The manufacturer part number is NC7SZ125M5X. While providing non-inverting polarity. The given dimensions of the product include 3 x 1.7 x 1.3mm. While its minimum operating supply voltage is 1.65 v. The logic family is tinylogic uhs. Furthermore, the product is 1.7mm wide. It carries single ended input type. On the other hand, it is featured with 32ma of max. low level output current. While a -32ma of maximum high level output current. It provides up to 5.7 ns @ 3.3 v maximum propagation delay time. It comprises 1 channels per chip. Furthermore, it has a3 state output. The package is a sort of sot-23. It has a maximum operating temperature of +85 °c. Its accurate length is 3mm. It contains 5 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes buffer, line driver. In addition, the height is 1.3mm. Whereas, the minimum operating temperature of the product is -40 °c. Features 50pf of propagation delay test condition.
