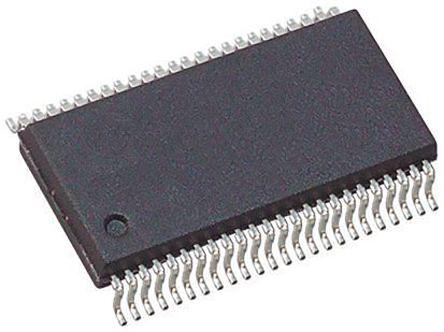

Texas Instruments 74LVTH16244ADGGR 16-channel Buffer & Line Driver, 3-State, 2.7 → 3.6 V, 48-Pin TSSOP

74LVTH16244ADGGR Texas Instruments  16-channel Buffer & Line Driver, 3-State, 2.7 → 3.6 V, 48-Pin TSSOP
Texas Instruments

Product Information

Polarity:
Non-Inverting
Dimensions:
12.5 x 6.1 x 1.15mm
Minimum Operating Supply Voltage:
2.7 V
Logic Family:
LVT
Width:
6.1mm
Input Type:
Single Ended
Maximum Low Level Output Current:
64mA
Maximum High Level Output Current:
-32mA
Maximum Propagation Delay Time @ Maximum CL:
2.3 ns @ 3.3 V
Number of Channels per Chip:
16
Output Type:
3 State
Package Type:
TSSOP
Maximum Operating Temperature:
+85 °C
Length:
12.5mm
Pin Count:
48
Maximum Operating Supply Voltage:
3.6 V
Mounting Type:
Surface Mount
Logic Function:
Buffer, Line Driver
Height:
1.15mm
Minimum Operating Temperature:
-40 °C
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is 16-channel Buffer & Line Driver 3-State 2.7 → 3.6 V 48-Pin TSSOP manufactured by Texas Instruments. The manufacturer part number is 74LVTH16244ADGGR. While providing non-inverting polarity. The given dimensions of the product include 12.5 x 6.1 x 1.15mm. While its minimum operating supply voltage is 2.7 v. The logic family is lvt. Furthermore, the product is 6.1mm wide. It carries single ended input type. On the other hand, it is featured with 64ma of max. low level output current. While a -32ma of maximum high level output current. It provides up to 2.3 ns @ 3.3 v maximum propagation delay time. It comprises 16 channels per chip. Furthermore, it has a3 state output. The package is a sort of tssop. It has a maximum operating temperature of +85 °c. Its accurate length is 12.5mm. It contains 48 pins. It has 3.6 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes buffer, line driver. In addition, the height is 1.15mm. Whereas, the minimum operating temperature of the product is -40 °c. Features 50pf of propagation delay test condition.
