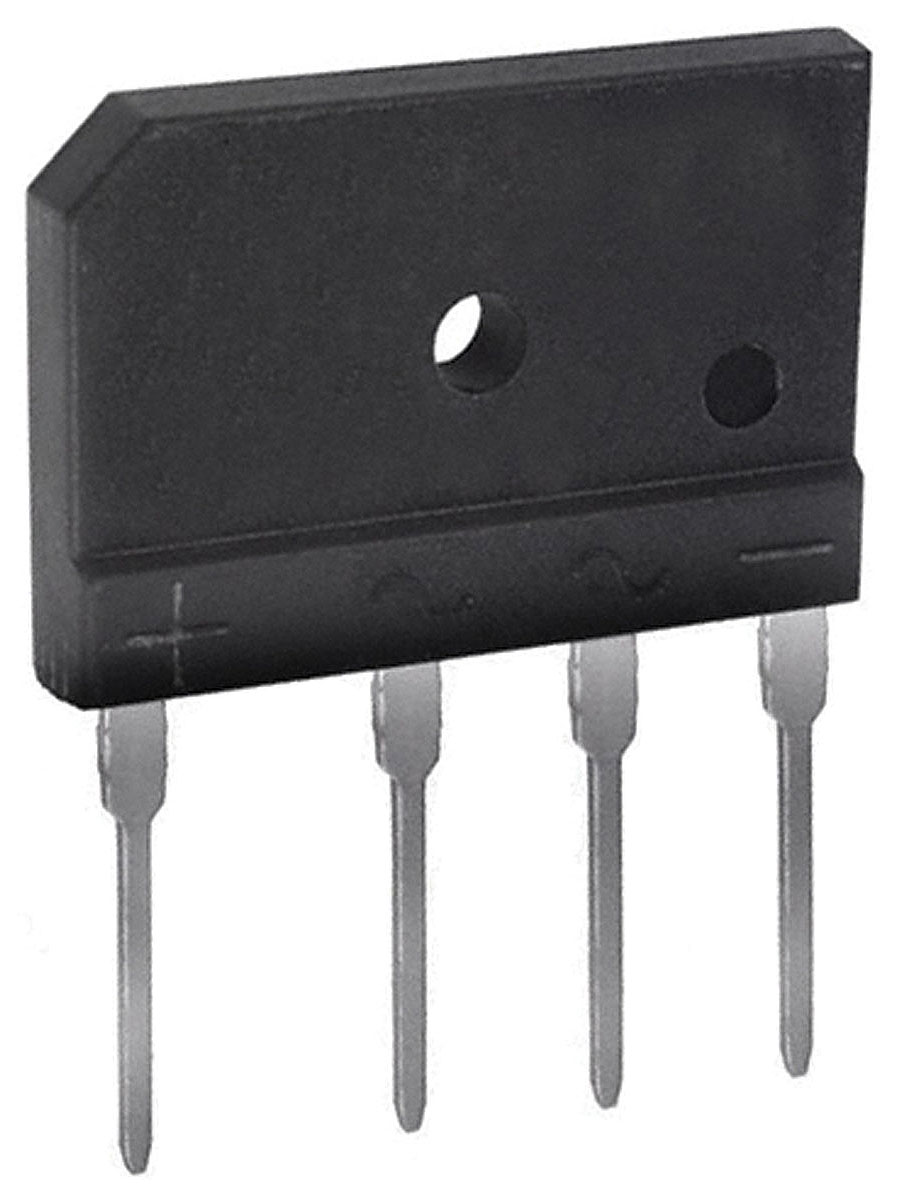

HY Electronic Corp GBJ2510, Bridge Rectifier, 25A 1000V, 4-Pin GBJ

Enrgtech Part No: ET13929726
|
Manufacturer Part No:
GBJ2510
|
Manufacturer: HY Electronic Corp

GBJ2510 HY Electronic Corp , Bridge Rectifier, 25A 1000V, 4-Pin GBJ

Product Information

Peak Reverse Current:

500µA

Dimensions:

30.3 x 4.8 x 19.7mm

Bridge Type:

Single Phase

Peak Average Forward Current:

25A

Junction Capacitance:

85pF

Height:

19.7mm

Peak Forward Voltage:

Width:

4.8mm

Length:

30.3mm

Package Type:

GBJ

Peak Reverse Repetitive Voltage:

1000V

Minimum Operating Temperature:

-55 °C

Checking for live stock

The HY Electronic Corp GBJ2510 is a high-performance single-phase bridge rectifier designed for efficient AC to DC power conversion. Engineered with a robust glass-passivated junction, this 4-pin GBJ-packaged component supports a substantial peak average forward current of 25A and a peak reverse repetitive voltage of 1000V. Its compact 30.3mm length and through-hole mounting design make it an essential choice for power supply circuits requiring reliable voltage regulation and durable thermal endurance.

What Makes Our Product Stand Out?

This HY Electronic Corp GBJ2510 single-phase bridge rectifier offers exceptional high-voltage stability and superior thermal management for long-term reliability. Its streamlined GBJ package ensures easy integration.

High peak reverse voltage of 1000V.
Wide operating temperature range.

Core Performance Features

Peak Average Forward Current: 25A
Peak Reverse Repetitive Voltage: 1000V
Bridge Type: Single Phase
Package/Case: GBJ (4-Pin)
Forward Voltage Drop: 1.0V (Peak)
Junction Capacitance: 85pF
Dimensions: 30.3mm x 4.8mm x 19.7mm

Suitable Environments

High-power industrial power supplies.
Household appliance AC/DC rectification.
Switch-mode power supply (SMPS) systems.
Environments requiring high thermal stability (-55°C to +150°C).
