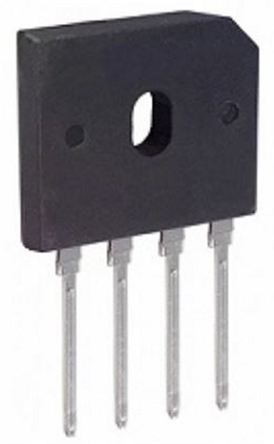

HY Electronic Corp GBU1010, Bridge Rectifier, 10A 1000V, 4-Pin GBU

GBU1010 HY Electronic Corp , Bridge Rectifier, 10A 1000V, 4-Pin GBU
HY Electronic Corp

Product Information

Peak Reverse Current:
500µA
Dimensions:
22.3 x 3.56 x 18.8mm
Bridge Type:
Single Phase
Peak Non-Repetitive Forward Surge Current:
220A
Peak Average Forward Current:
10A
Junction Capacitance:
60pF
Height:
18.8mm
Peak Forward Voltage:
1V
Width:
3.56mm
Length:
22.3mm
Package Type:
GBU
Peak Reverse Repetitive Voltage:
1000V
Minimum Operating Temperature:
-55 °C
Mounting Type:
Through Hole
Configuration:
Single
Maximum Operating Temperature:
+150 °C
Pin Count:
4
RoHs Compliant
Checking for live stock

This is Bridge Rectifier 10A 1000V 4-Pin GBU manufactured by HY Electronic Corp. The manufacturer part number is GBU1010. It has a typical 500µa peak reverse current . The given dimensions of the product include 22.3 x 3.56 x 18.8mm. It contains a/an single phase type bridge . Moreover, a bespoke product has 220a peak non-repetitive forward surge current. Additionally, it has about 10a of peak average forward current . It has a junction capacitance of 60pf . In addition, the height is 18.8mm. Whereas, the peak forward voltage is about 1v . Furthermore, the product is 3.56mm wide. Its accurate length is 22.3mm. The package is a sort of gbu. While having the peak reverse repetitive 1000v. Whereas, the minimum operating temperature of the product is -55 °c. The product is available in through hole configuration. The product is available in single configuration. It has a maximum operating temperature of +150 °c. It contains 4 pins.

pdf icon
Glass Passivated Bridge Rectifiers GBU10005 thru GBU1010(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
