Manufacturer : TE Connectivity
Manufacturer Part No : 151469
Enrgtech Part No : ET10002744
Product Range : PolySwitch RXEF Series

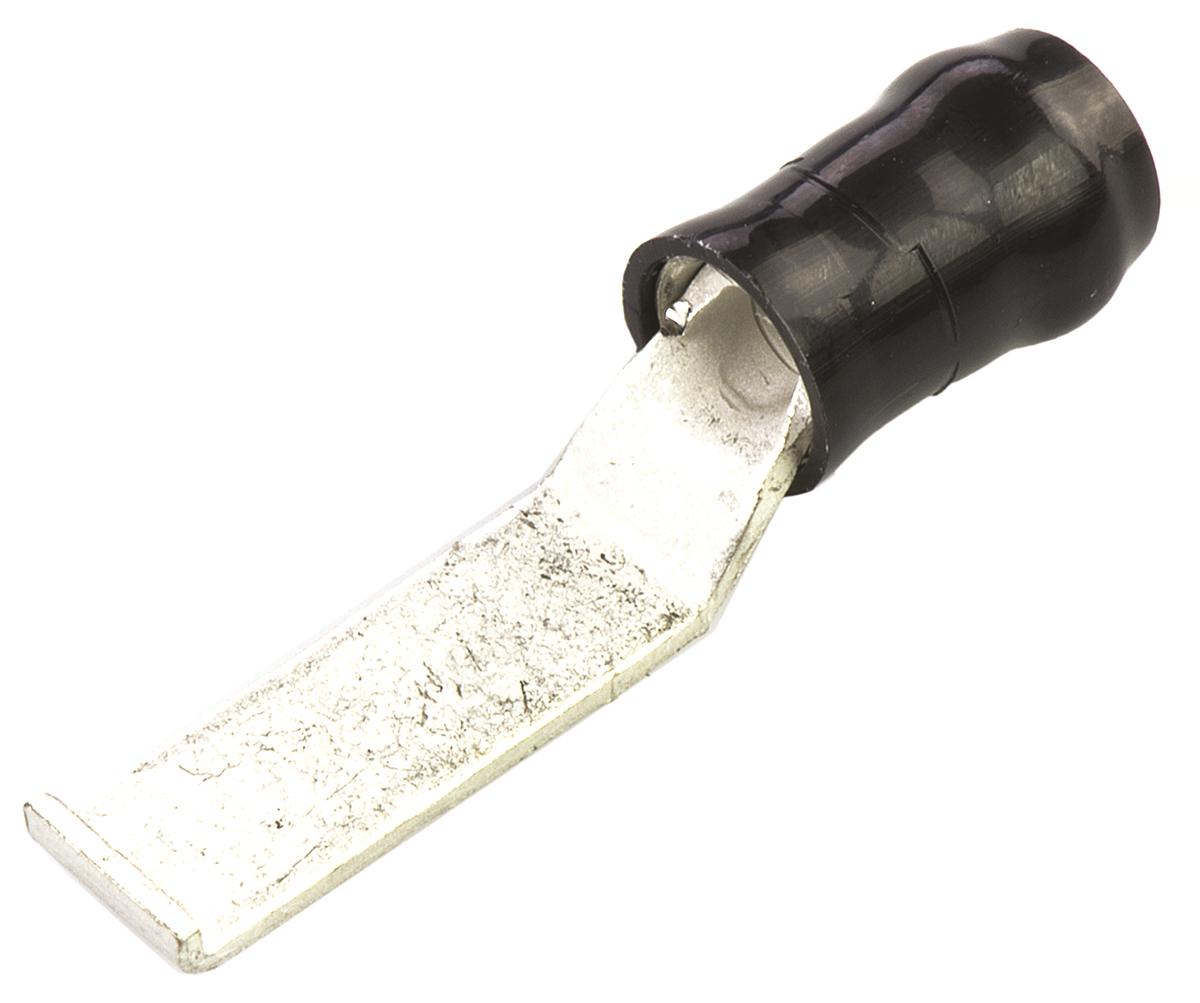

TE Connectivity Hooked PIDG Series Insulated Crimp Blade Terminal 16mm Blade Length, 1mm² to 2.6mm², 16AWG to 14AWG

TE Connectivity PIDG Blade Wire Crimp Terminals PIDG blade wire crimp terminals consisting of a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a nylon colour coded insulation sleeve. These PIDG blade wire crimp terminals are available with different barrel lengths and diameters to accept various wire sizes. Note Not for use with double wire Approvals UL recognised Approvals MIL-T-7928 / BS4G178 / UL recognised TE Connectivity PIDG Terminals

Product Information

Shrouded/Unshrouded : Unshrouded
Maximum Wire Size mm² : 2.6mm²
Blade Width : 4.6mm
Minimum Wire Size AWG : 16AWG
Blade Thickness : 0.84mm
Gender : Male
Colour : Black
Inner Diameter : 4.2mm
Hooked : Yes
Overall Length : 27.41mm
Blade Length : 16mm
Insulation Material : Nylon
Contact Plating : Tin
Series : PIDG
Insulation : Insulated
Maximum Wire Size AWG : 14AWG
Minimum Wire Size mm² : 1mm²
rohs : RoHS Certificate of Compliance
Contact Material : Copper
